79109-1010

Affinity Medical Technologies - a Molex company

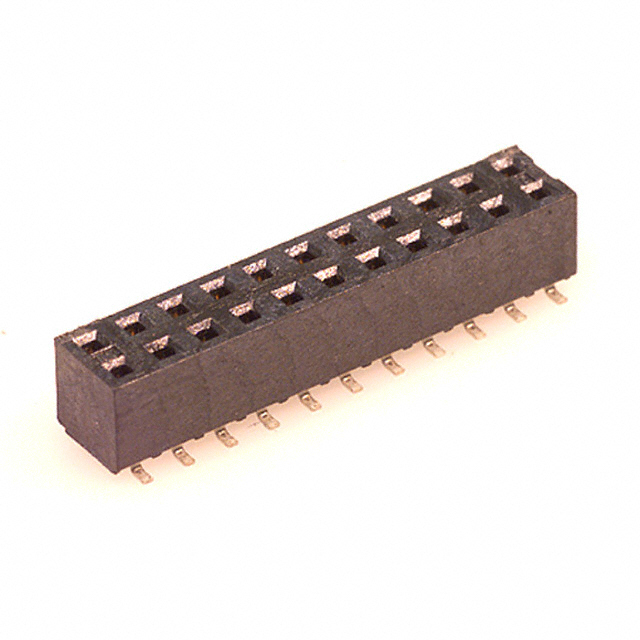

Image may be representation. See specifications for product details.

Product Overview

Part Number:	79109-1010
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 22POS 2MM VERT SMD
Datasheets:	79109-1010.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55233 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 55233 pcs

Reference Price (In US Dollars)

1472 pcs: $0.658

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.658

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 79109-1010

Part Number	79109-1010	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 22POS 2MM VERT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55233 pcs	Data sheet	79109-1010.pdf
Voltage Rating	125V	Termination	Solder
Style	Board to Board or Cable	Series	Milli-Grid 79109
Row Spacing - Mating	0.079" (2.00mm)	Pitch - Mating	0.079" (2.00mm)
Packaging	Tube	Other Names	079109-1010 079109-1010-E 0791091010 0791091010-E 79109-1010-E 79109-1010-TB23 79109-1010-TB24 791091010 791091010-E WM18706
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	22
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.175" (4.45mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	22 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold	Current Rating	1A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Finish Thickness - Post	74.8µin (1.90µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	Automotive, General Purpose, Telecommunications
