79109-0014

Affinity Medical Technologies - a Molex company

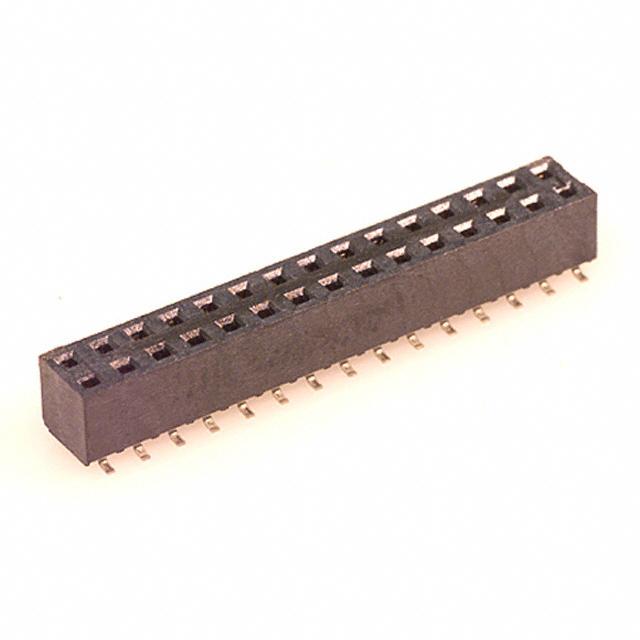

Image may be representation. See specifications for product details.

Product Overview

Part Number:	79109-0014
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 30POS 2MM VERT SMD
Datasheets:	79109-0014.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	2804 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2804 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 79109-0014

Part Number	79109-0014	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 30POS 2MM VERT SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	2804 pcs	Data sheet	79109-0014.pdf
Voltage Rating	125V	Termination	Solder
Style	Board to Board or Cable	Series	Milli-Grid 79109
Row Spacing - Mating	0.079" (2.00mm)	Pitch - Mating	0.079" (2.00mm)
Packaging	Tube	Other Names	079109-0014 079109-0014-E 0791090014 0791090014-E 791-09-0014-P 79109-0014-E 79109-0014-TB17 791090014 791090014-E WM18026
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	30
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.175" (4.45mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	30 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Current Rating	1A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	Automotive, General Purpose, Telecommunications
