70555-0009

Affinity Medical Technologies - a Molex companyAffinity Medical Technologies - a Molex company

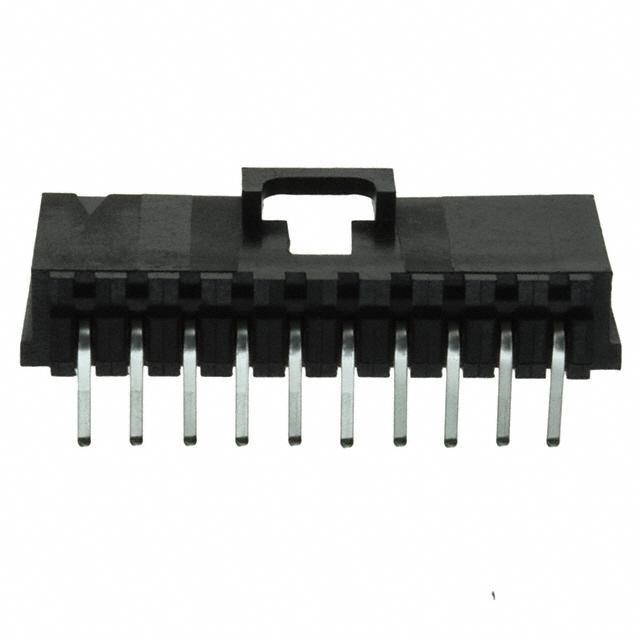

70555-0009 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 70555-0009
Manufacturer/Brand: Affinity Medical Technologies - a Molex company
Product description CONN HEADER 10POS .100 R/A TIN
Datasheets: 1.70555-0009.pdf2.70555-0009.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 70735 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 70735 pcs
Reference Price (In US Dollars)
1 pcs
$0.491
10 pcs
$0.433
100 pcs
$0.374
500 pcs
$0.306
1000 pcs
$0.272
5000 pcs
$0.238
10000 pcs
$0.226
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.491

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 70555-0009

Part Number 70555-0009 Manufacturer Affinity Medical Technologies - a Molex company
Description CONN HEADER 10POS .100 R/A TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 70735 pcs Data sheet 1.70555-0009.pdf2.70555-0009.pdf
Voltage Rating 250V Termination Solder
Style Board to Cable/Wire Shrouding Shrouded - 4 Wall
Series SL 70555 Row Spacing - Mating -
Pitch - Mating 0.100" (2.54mm) Packaging Tube
Overall Contact Length - Other Names 0705550009
705550009
A-70555-0009
WM4172
Operating Temperature -40°C ~ 105°C Number of Rows 1
Number of Positions Loaded All Number of Positions 10
Mounting Type Through Hole, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Mated Stacking Heights -
Manufacturer Standard Lead Time 6 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Polyester, Glass Filled Insulation Height 0.215" (5.45mm)
Insulation Color Black Ingress Protection -
Features Board Guide Fastening Type Latch Holder
Detailed Description Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm) Current Rating -
Contact Type Male Pin Contact Shape Square
Contact Material Phosphor Bronze Contact Length - Post 0.130" (3.30mm)
Contact Length - Mating 0.240" (6.10mm) Contact Finish Thickness - Post 150.0µin (3.81µm)
Contact Finish Thickness - Mating 150.0µin (3.81µm) Contact Finish - Post Tin
Contact Finish - Mating Tin Connector Type Header
Applications Automotive, General Purpose, Industrial, Medical
