70555-0008

Affinity Medical Technologies - a Molex company

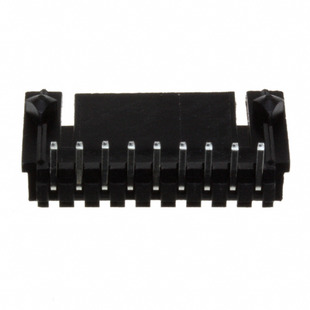

Image may be representation. See specifications for product details.

Product Overview

Part Number:	70555-0008
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 9POS .100 R/A TIN
Datasheets:	1.70555-0008.pdf 2.70555-0008.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	69904 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 69904 pcs

Reference Price (In US Dollars)

1 pcs: $0.513

10 pcs: $0.452

100 pcs: $0.389

500 pcs: $0.319

1000 pcs: $0.283

5000 pcs: $0.248

10000 pcs: $0.235

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.513

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 70555-0008

Part Number	70555-0008	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 9POS .100 R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69904 pcs	Data sheet	1.70555-0008.pdf 2.70555-0008.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SL 70555	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	0705550008 705550008 A-70555-0008 WM4171
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.215" (5.45mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 9 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	150.0µin (3.81µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
