5020462070

Affinity Medical Technologies - a Molex company

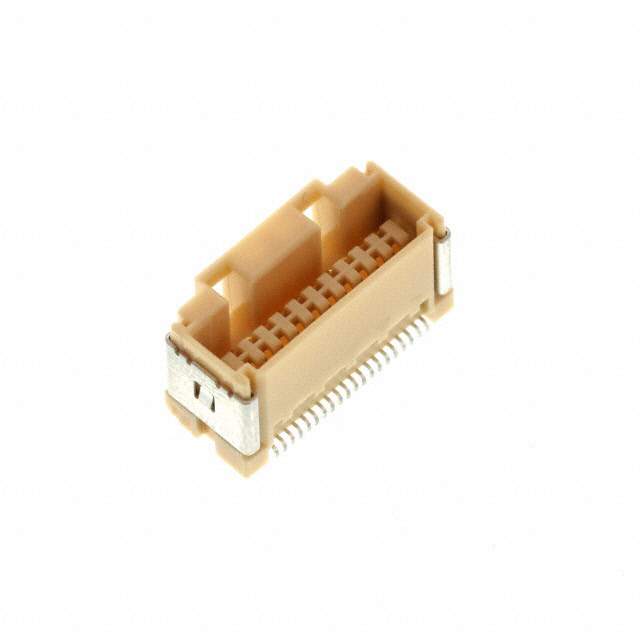

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5020462070
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	1.25MM WTB RCPT DUAL R/A 20POS
Datasheets:	5020462070.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	59420 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 59420 pcs

Reference Price (In US Dollars)

650 pcs: $0.616

1300 pcs: $0.525

1950 pcs: $0.507

3250 pcs: $0.489

6500 pcs: $0.471

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.616

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5020462070

Part Number	5020462070	Manufacturer	Affinity Medical Technologies - a Molex company
Description	1.25MM WTB RCPT DUAL R/A 20POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59420 pcs	Data sheet	5020462070.pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Cable/Wire	Series	Duo-Clasp 502046
Row Spacing - Mating	-	Pitch - Mating	0.049" (1.25mm)
Packaging	Tape & Reel (TR)	Other Names	502046-2070 WM4616 WM4616-ND WM4616TR
Operating Temperature	-25°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.295" (7.50mm)
Insulation Color	Natural	Ingress Protection	-
Features	Pick and Place, Solder Retention	Fastening Type	Detent Lock
Detailed Description	20 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold	Current Rating	1A
Contact Type	Forked	Contact Shape	-
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	3.90µin (0.099µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	General Purpose
