5016285191

Affinity Medical Technologies - a Molex company

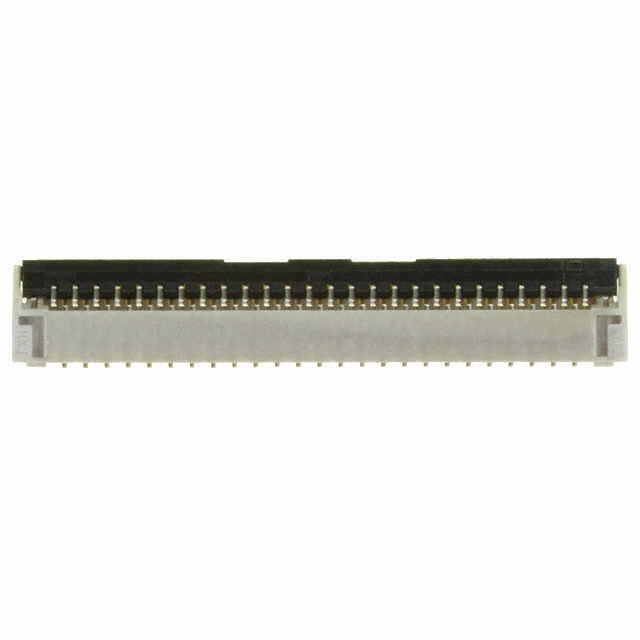

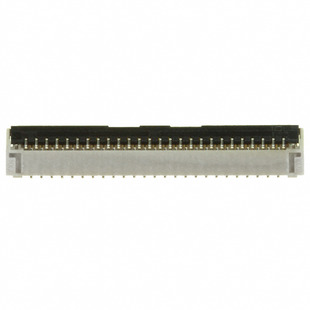

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5016285191
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 51POS 0.30MM R/A
Datasheets:	5016285191.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15940 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15940 pcs

Reference Price (In US Dollars)

1 pcs: $2.12

10 pcs: $2.037

25 pcs: $1.867

50 pcs: $1.782

100 pcs: $1.697

250 pcs: $1.485

500 pcs: $1.443

1000 pcs: $1.231

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.12

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5016285191

Part Number	5016285191	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 51POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15940 pcs	Data sheet	5016285191.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 501628	Pitch	0.012" (0.30mm)
Packaging	Cut Tape (CT)	Other Names	WM2189 WM2189-ND WM2189CT
Operating Temperature	-25°C ~ 85°C	Number of Positions	51
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Locking Feature	Flip Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Housing Color	-
Height Above Board	0.035" (0.88mm)	Flat Flex Type	FPC
Features	-	FFC, FCB Thickness	0.20mm
Detailed Description	51 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle	Current Rating	0.2A
Contact Material	Copper Alloy	Contact Finish Thickness	-
Contact Finish	Gold	Connector/Contact Type	Contacts, Bottom
Cable End Type	Tabbed	Actuator Material	Polyamide (PA), Nylon, Glass Filled
Actuator Color	-
