5016283591

Affinity Medical Technologies - a Molex company

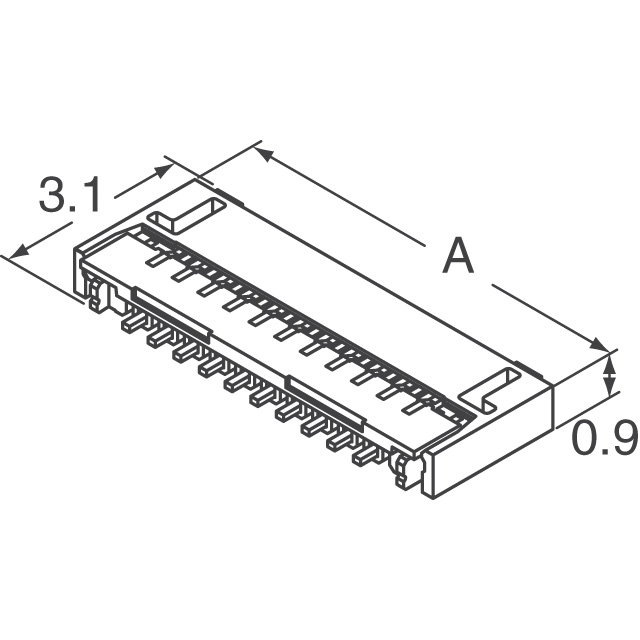

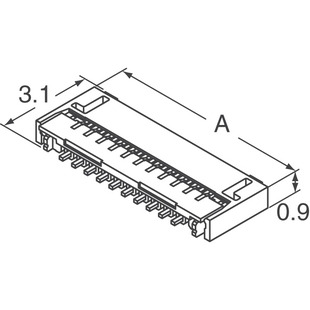

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5016283591
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 35POS 0.30MM R/A
Datasheets:	5016283591.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40349 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 40349 pcs

Reference Price (In US Dollars)

3000 pcs: $0.735

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.735

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5016283591

Part Number	5016283591	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 35POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40349 pcs	Data sheet	5016283591.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 501628	Pitch	0.012" (0.30mm)
Packaging	Tape & Reel (TR)	Other Names	0501628-3591 0501628-3591-C 05016283591 05016283591-C 501628-3591 501628-3591-C 501628-3591-ND 5016283591-C WM2186 WM2186-ND WM2186TR
Operating Temperature	-25°C ~ 85°C	Number of Positions	35
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	17 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	-	Height Above Board	0.035" (0.88mm)
Flat Flex Type	FPC	Features	-
FFC, FCB Thickness	0.20mm	Detailed Description	35 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Copper Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tabbed
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Color	-
