5016164585

Affinity Medical Technologies - a Molex company

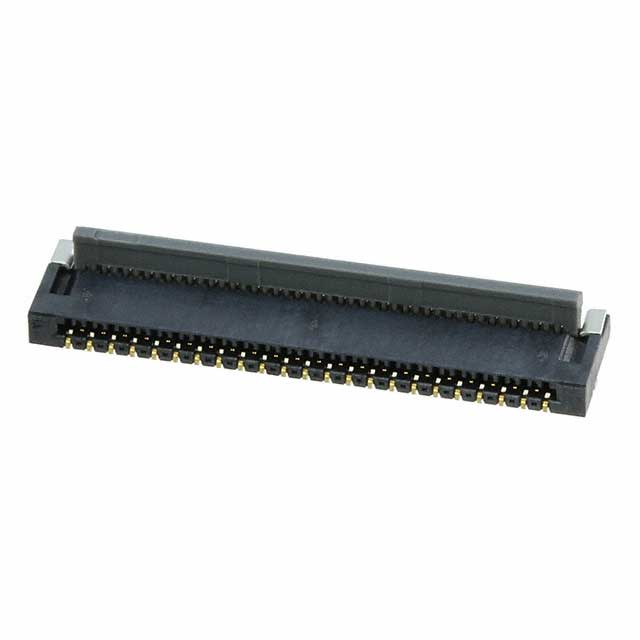

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5016164585
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC TOP 45POS 0.30MM R/A
Datasheets:	5016164585.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	75689 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 75689 pcs

Reference Price (In US Dollars)

3000 pcs: $0.489

6000 pcs: $0.471

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.489

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5016164585

Part Number	5016164585	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC TOP 45POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	75689 pcs	Data sheet	5016164585.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 501616	Pitch	0.012" (0.30mm)
Packaging	Tape & Reel (TR)	Other Names	0501616-4585 0501616-4585-C 05016164585 05016164585-C 501616-4550 501616-4585 501616-4585-C 501616-4585-ND 5016164585-C SD-501616-007 WM2207TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	45
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Flip Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polymer
Housing Color	Black	Height Above Board	0.044" (1.12mm)
Flat Flex Type	FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.20mm	Detailed Description	45 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Copper Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Tapered
Actuator Material	Polymer	Actuator Color	Gray
