5016161975

Affinity Medical Technologies - a Molex company

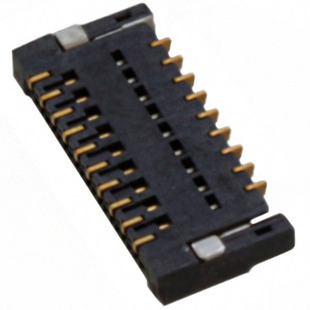

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5016161975
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC TOP 19POS 0.30MM R/A
Datasheets:	5016161975.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	113080 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 113080 pcs

Reference Price (In US Dollars)

3000 pcs: $0.264

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.264

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5016161975

Part Number	5016161975	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC TOP 19POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	113080 pcs	Data sheet	5016161975.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 501616	Pitch	0.012" (0.30mm)
Packaging	Tape & Reel (TR)	Other Names	0501616-1975 0501616-1975-C 05016161975 05016161975-C 501616-1940 501616-1975 501616-1975-C 501616-1975-ND 5016161975-C SD-501616-006 WM2199 WM2199-ND WM2199TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	19
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	7 Weeks	Locking Feature	Flip Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polymer
Housing Color	Black	Height Above Board	0.044" (1.12mm)
Flat Flex Type	FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.20mm	Detailed Description	19 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Copper Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Tapered
Actuator Material	Polymer	Actuator Color	Gray
