5015714007

Affinity Medical Technologies - a Molex company

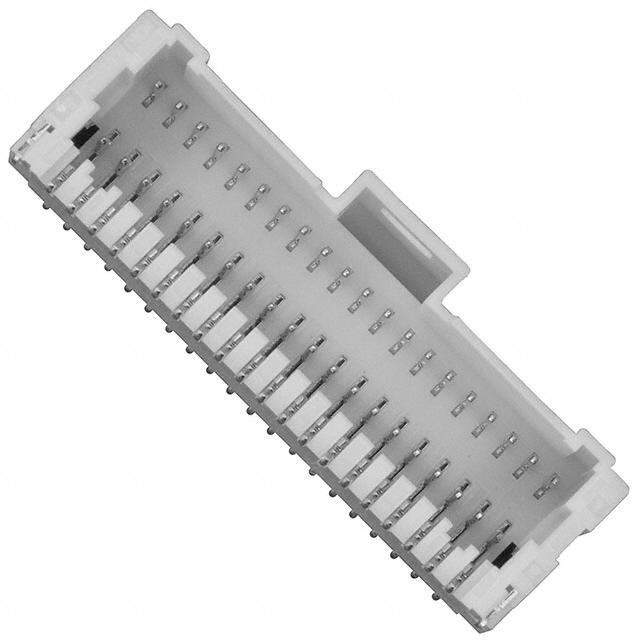

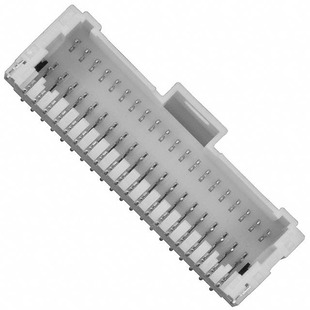

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5015714007
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 1MM 40POS R/A SMD
Datasheets:	1.5015714007.pdf 2.5015714007.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	49152 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 49152 pcs

Reference Price (In US Dollars)

800 pcs: $0.805

1600 pcs: $0.727

2400 pcs: $0.701

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.805

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5015714007

Part Number	5015714007	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 1MM 40POS R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	49152 pcs	Data sheet	1.5015714007.pdf 2.5015714007.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Pico-Clasp 501571	Row Spacing - Mating	0.105" (2.66mm)
Pitch - Mating	0.039" (1.00mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	501571-4007 WM7913TR
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	40
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.325" (8.25mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Latch Holder
Detailed Description	Connector Header Surface Mount, Right Angle 40 position 0.039" (1.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose
