5015681007

Affinity Medical Technologies - a Molex company

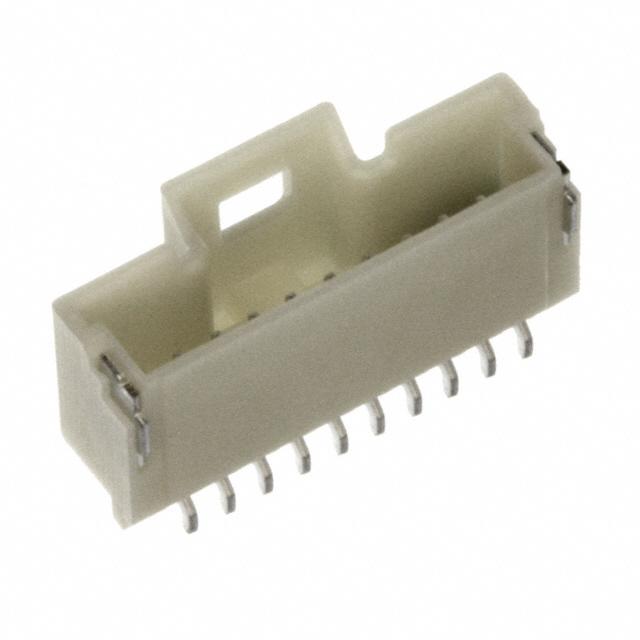

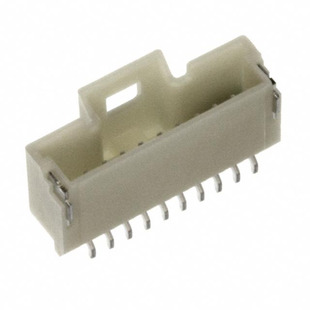

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5015681007
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 1MM 10POS SMD R/A
Datasheets:	1.5015681007.pdf 2.5015681007.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	102846 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 102846 pcs

Reference Price (In US Dollars)

1 pcs: $0.30

10 pcs: $0.263

100 pcs: $0.227

500 pcs: $0.186

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.30

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5015681007

Part Number	5015681007	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 1MM 10POS SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	102846 pcs	Data sheet	1.5015681007.pdf 2.5015681007.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Pico-Clasp 501568	Row Spacing - Mating	-
Pitch - Mating	0.039" (1.00mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	WM7901CT
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.185" (4.70mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Latch Holder
Detailed Description	Connector Header Surface Mount, Right Angle 10 position 0.039" (1.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	40.0µin (1.02µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
