Affinity Medical Technologies - a Molex company
| Part Number | 39860-0712 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2826 pcs | Data sheet | 39860-0712.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Eurostyle 39860 |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 039860-0712 039860-0712-E 0398600712 0398600712-E 39860-0712-E 398600712 398600712-E 861912 WM5861 |
| Operating Temperature | 110°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.330" (8.38mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 90°, Right Angle | Features | - |

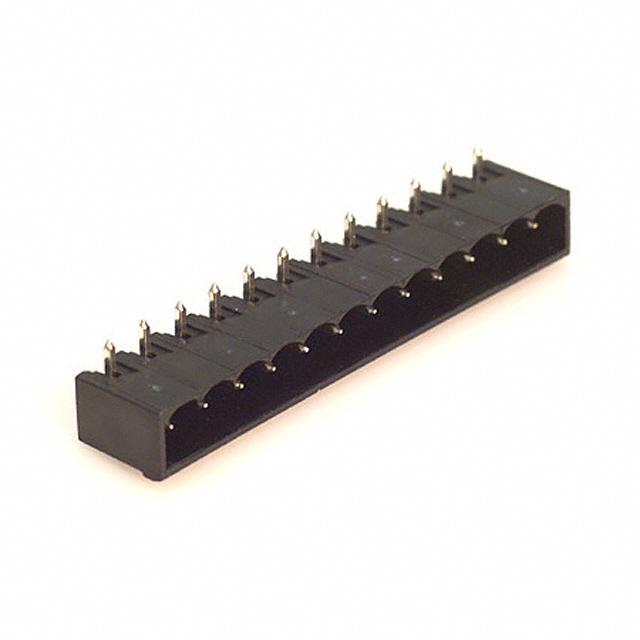

| Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.130" (3.30mm) |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Black |
