Affinity Medical Technologies - a Molex company

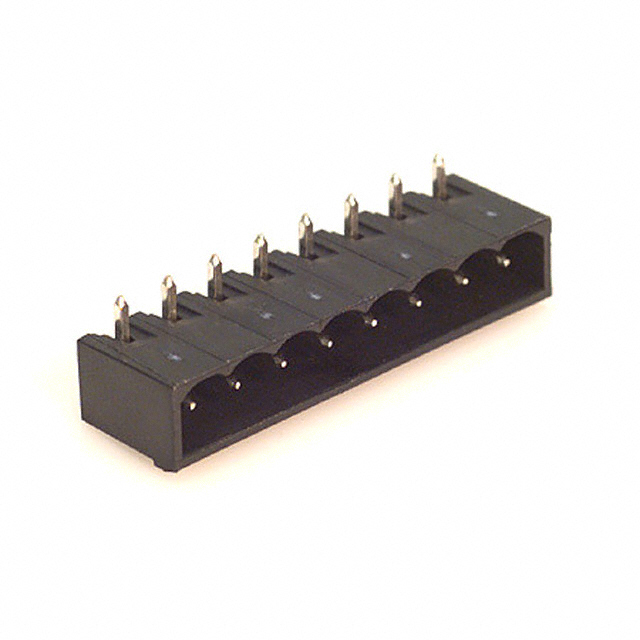

| Part Number | 39860-0708 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 8POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47824 pcs | Data sheet | 39860-0708.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Eurostyle 39860 |
| Screw Size | - | Positions Per Level | 8 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 039860-0708 039860-0708-E 0398600708 0398600708-E 39860-0708-E 398600708 398600708-E 861908 WM5859 |
| Operating Temperature | 110°C | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.330" (8.38mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | 0.130" (3.30mm) | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | Black |
