1722861206

Affinity Medical Technologies - a Molex company

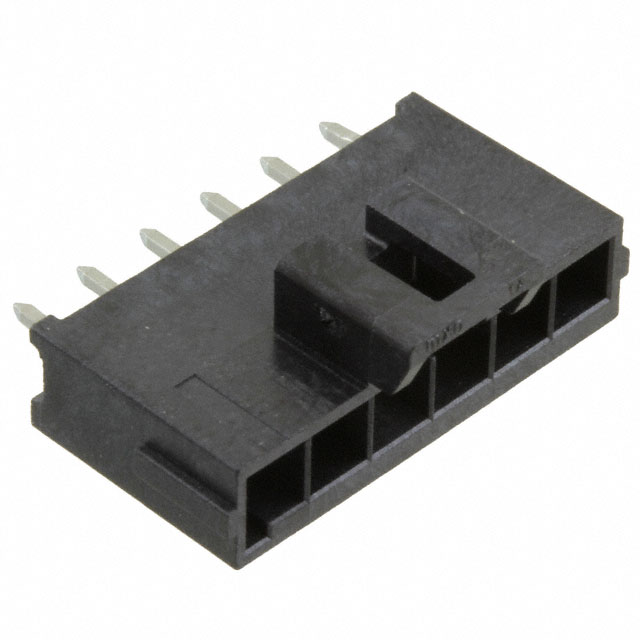

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1722861206
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	ULTRAFIT CONN HDR 06CKT
Datasheets:	1.1722861206.pdf 2.1722861206.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52157 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 52157 pcs

Reference Price (In US Dollars)

1 pcs: $0.60

10 pcs: $0.543

100 pcs: $0.465

910 pcs: $0.377

1820 pcs: $0.321

5460 pcs: $0.295

10010 pcs: $0.288

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.60

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1722861206

Part Number	1722861206	Manufacturer	Affinity Medical Technologies - a Molex company
Description	ULTRAFIT CONN HDR 06CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52157 pcs	Data sheet	1.1722861206.pdf 2.1722861206.pdf
Voltage Rating	400V	Termination	Kinked Pin, Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Ultra-Fit 172286	Row Spacing - Mating	-
Pitch - Mating	0.138" (3.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	172286-1206 WM11577
Operating Temperature	-40°C ~ 120°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	26.99mm
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.465" (11.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 6 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
