1722861204

Affinity Medical Technologies - a Molex company

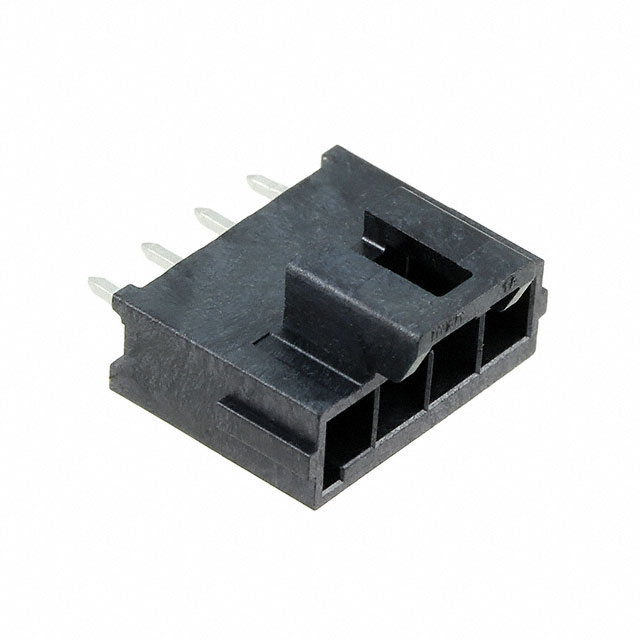

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1722861204
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	ULTRAFIT CONN HDR 04CKT
Datasheets:	1.1722861204.pdf 2.1722861204.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	63445 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 63445 pcs

Reference Price (In US Dollars)

1 pcs: $0.488

10 pcs: $0.428

100 pcs: $0.369

500 pcs: $0.302

1400 pcs: $0.269

5600 pcs: $0.235

11200 pcs: $0.223

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.488

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1722861204

Part Number	1722861204	Manufacturer	Affinity Medical Technologies - a Molex company
Description	ULTRAFIT CONN HDR 04CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63445 pcs	Data sheet	1.1722861204.pdf 2.1722861204.pdf
Voltage Rating	400V	Termination	Kinked Pin, Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Ultra-Fit 172286	Row Spacing - Mating	-
Pitch - Mating	0.138" (3.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	172286-1204 WM11575
Operating Temperature	-40°C ~ 120°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	26.99mm
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.465" (11.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 4 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
