1510654060

Affinity Medical Technologies - a Molex company

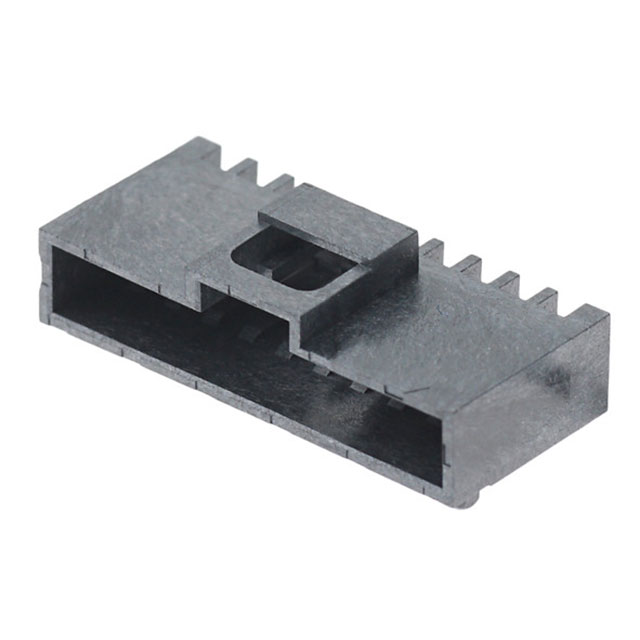

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1510654060
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR 10POS 2MM T/H R/A
Datasheets:	1.1510654060.pdf 2.1510654060.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	46495 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 46495 pcs

Reference Price (In US Dollars)

1 pcs: $0.701

24 pcs: $0.636

120 pcs: $0.545

504 pcs: $0.454

1008 pcs: $0.389

5016 pcs: $0.345

10008 pcs: $0.337

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.701

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1510654060

Part Number	1510654060	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR 10POS 2MM T/H R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46495 pcs	Data sheet	1.1510654060.pdf 2.1510654060.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Milli-Grid 151065	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	151065-4060 WM15200
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.263" (6.67mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	0.141" (3.60mm)	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	98.4µin (2.50µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Telecommunications
