1510634010

Affinity Medical Technologies - a Molex company

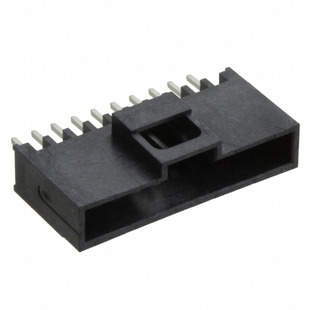

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1510634010
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR 10POS 2MM T/H
Datasheets:	1.1510634010.pdf 2.1510634010.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74138 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 74138 pcs

Reference Price (In US Dollars)

1 pcs: $0.452

24 pcs: $0.396

120 pcs: $0.341

504 pcs: $0.279

1008 pcs: $0.248

5016 pcs: $0.217

10008 pcs: $0.206

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.452

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1510634010

Part Number	1510634010	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR 10POS 2MM T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74138 pcs	Data sheet	1.1510634010.pdf 2.1510634010.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Milli-Grid 151063	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	151063-4010 WM15198
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.413" (10.49mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole 10 position 0.079" (2.00mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.142" (3.60mm)	Contact Length - Mating	0.141" (3.60mm)
Contact Finish Thickness - Post	78.7µin (2.00µm)	Contact Finish Thickness - Mating	98.4µin (2.50µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Telecommunications
