15-97-7082

Affinity Medical Technologies - a Molex company

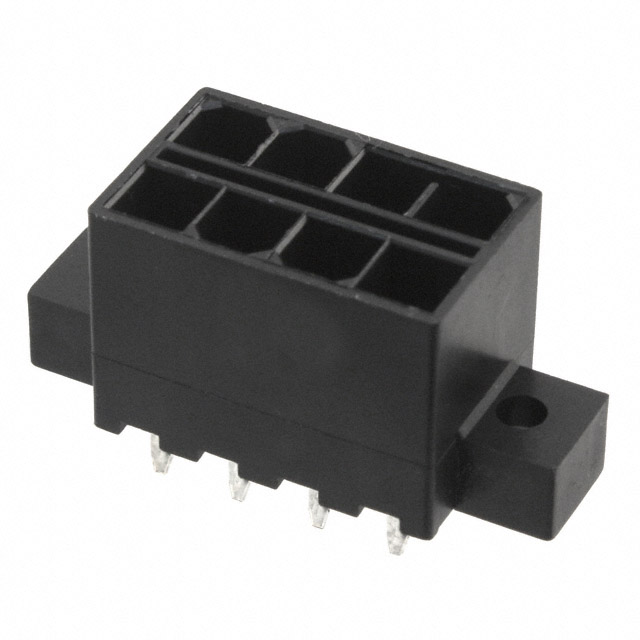

Image may be representation. See specifications for product details.

Product Overview

Part Number:	15-97-7082
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 8POS 4.2MM STR TIN
Datasheets:	1.15-97-7082.pdf 2.15-97-7082.pdf 3.15-97-7082.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60974 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 60974 pcs

Reference Price (In US Dollars)

1 pcs: $0.538

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.538

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 15-97-7082

Part Number	15-97-7082	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 8POS 4.2MM STR TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60974 pcs	Data sheet	1.15-97-7082.pdf 2.15-97-7082.pdf 3.15-97-7082.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit TPA 30069	Row Spacing - Mating	0.217" (5.51mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	001597-7082 0015977082 01597-7082 015977082 15-97-7082-ND 1597-7082 15977082 30069-08A1 WM4758
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.504" (12.80mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 8 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass Alloy	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	35.4µin (0.90µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, Industrial, Telecommunications
