15-97-7044

Affinity Medical Technologies - a Molex company

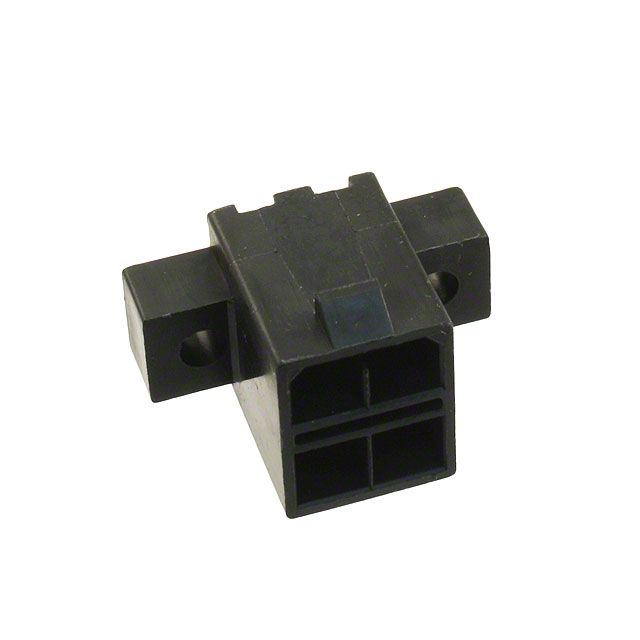

Image may be representation. See specifications for product details.

Product Overview

Part Number:	15-97-7044
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 4POS 4.2MM STR GOLD
Datasheets:	1.15-97-7044.pdf 2.15-97-7044.pdf 3.15-97-7044.pdf 4.15-97-7044.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58963 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 58963 pcs

Reference Price (In US Dollars)

1 pcs: $0.567

10 pcs: $0.513

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.567

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 15-97-7044

Part Number	15-97-7044	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 4POS 4.2MM STR GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58963 pcs	Data sheet	1.15-97-7044.pdf 2.15-97-7044.pdf 3.15-97-7044.pdf 4.15-97-7044.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit TPA 30069	Row Spacing - Mating	0.217" (5.51mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	001597-7044 0015977044 01597-7044 015977044 15-97-7044-ND 1597-7044 15977044 30069-04A2 WM4759
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester
Insulation Height	0.504" (12.80mm)	Insulation Color	Black
Ingress Protection	-	Features	Mounting Flange
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 4 position 0.165" (4.20mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass Alloy
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, Industrial, Telecommunications
