15-91-0180

Affinity Medical Technologies - a Molex company

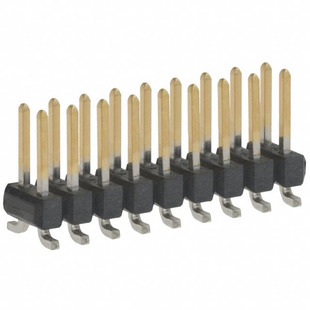

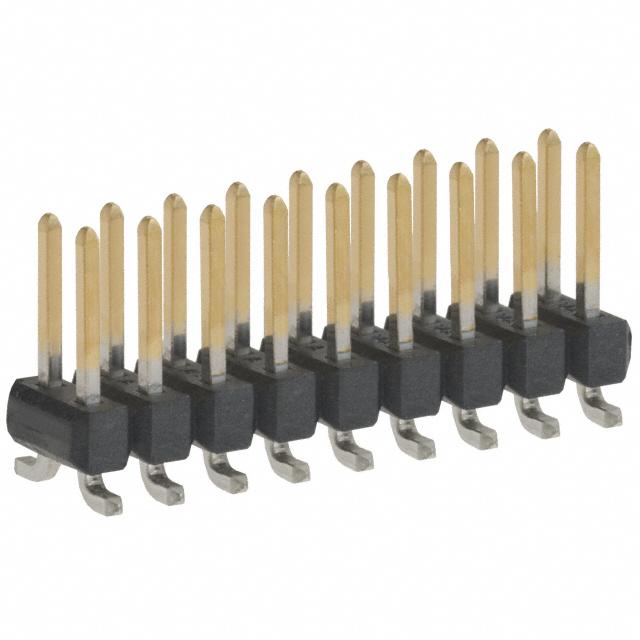

Image may be representation. See specifications for product details.

Product Overview

Part Number:	15-91-0180
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 18POS .100" STR 15AU
Datasheets:	15-91-0180.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52846 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 52846 pcs

Reference Price (In US Dollars)

1 pcs: $0.625

10 pcs: $0.566

100 pcs: $0.486

500 pcs: $0.405

1000 pcs: $0.347

5000 pcs: $0.307

10000 pcs: $0.301

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.625

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 15-91-0180

Part Number	15-91-0180	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 18POS .100" STR 15AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52846 pcs	Data sheet	15-91-0180.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid 71308	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	0015910180 15-91-0180-TB23 15910180 71308-0118N WM17463
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	18
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.090" (2.29mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 18 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
