15-91-0080

Affinity Medical Technologies - a Molex company

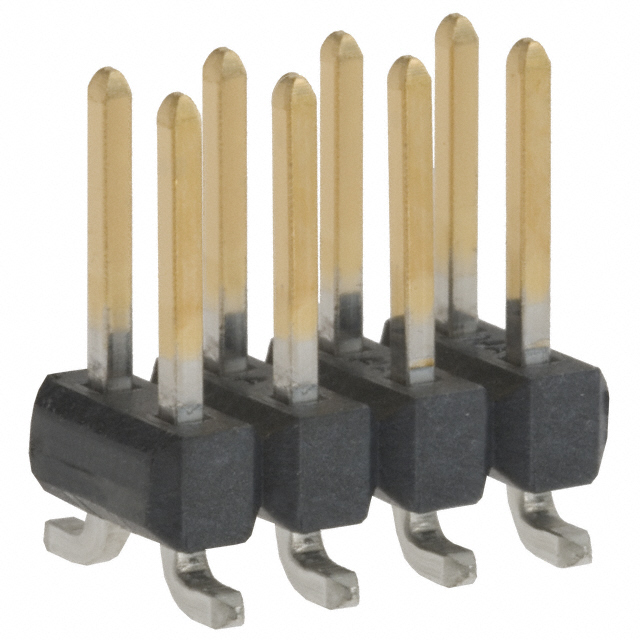

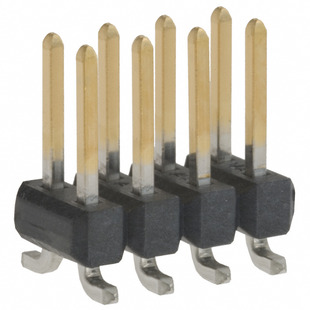

Image may be representation. See specifications for product details.

Product Overview

Part Number:	15-91-0080
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 8POS .100" VERT 15AU
Datasheets:	1.15-91-0080.pdf 2.15-91-0080.pdf 3.15-91-0080.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	142936 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 142936 pcs

Reference Price (In US Dollars)

1 pcs: $0.267

10 pcs: $0.236

100 pcs: $0.203

500 pcs: $0.166

2808 pcs: $0.134

5616 pcs: $0.129

11232 pcs: $0.123

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.267

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 15-91-0080

Part Number	15-91-0080	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 8POS .100" VERT 15AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	142936 pcs	Data sheet	1.15-91-0080.pdf 2.15-91-0080.pdf 3.15-91-0080.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid 71308	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	0015910080 15-91-0080-P 15910080 71308-0108N WM17458
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.090" (2.29mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 8 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
