1053131205

Affinity Medical Technologies - a Molex company

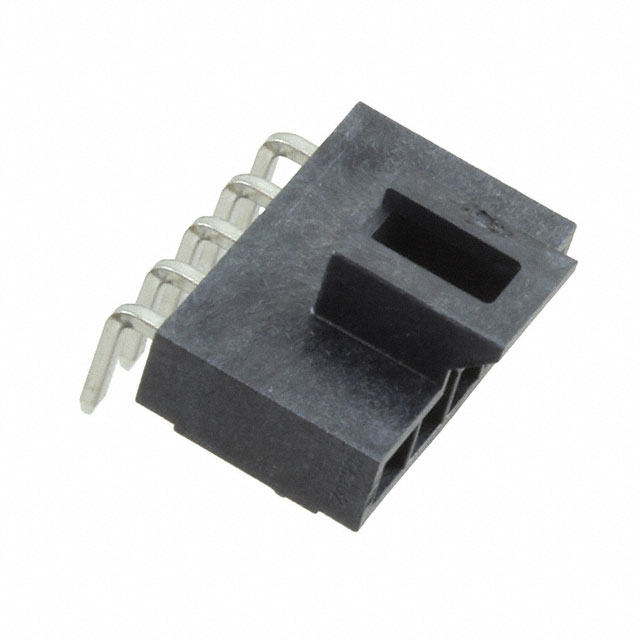

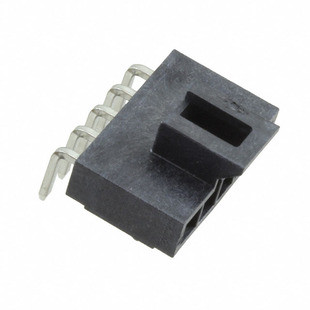

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1053131205
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	NANO-FIT HDR RA SGL 5CKT 15AU BL
Datasheets:	1.1053131205.pdf 2.1053131205.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52365 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 52365 pcs

Reference Price (In US Dollars)

1 pcs: $0.578

10 pcs: $0.526

120 pcs: $0.451

600 pcs: $0.375

1080 pcs: $0.322

5040 pcs: $0.285

10080 pcs: $0.279

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.578

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1053131205

Part Number	1053131205	Manufacturer	Affinity Medical Technologies - a Molex company
Description	NANO-FIT HDR RA SGL 5CKT 15AU BL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52365 pcs	Data sheet	1.1053131205.pdf 2.1053131205.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Nano-Fit 105313	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	105313-1205 WM15138
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole, Right Angle	Material Flammability Rating	-
Mated Stacking Heights	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.149" (3.78mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Guide
Fastening Type	Latch Lock	Detailed Description	Connector Header Through Hole, Right Angle 5 position 0.098" (2.50mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.126" (3.20mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	59.0µin (1.50µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
