1053131108

Affinity Medical Technologies - a Molex company

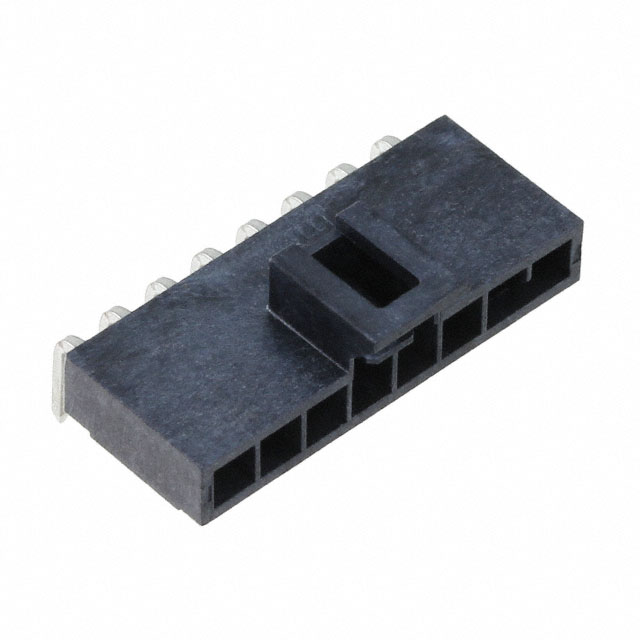

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1053131108
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	NANO-FIT RIGHT ANGLE HEADER, TH
Datasheets:	1.1053131108.pdf 2.1053131108.pdf 3.1053131108.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60411 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 60411 pcs

Reference Price (In US Dollars)

1 pcs: $0.639

84 pcs: $0.522

168 pcs: $0.499

504 pcs: $0.416

1008 pcs: $0.356

5040 pcs: $0.316

10080 pcs: $0.309

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.639

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1053131108

Part Number	1053131108	Manufacturer	Affinity Medical Technologies - a Molex company
Description	NANO-FIT RIGHT ANGLE HEADER, TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60411 pcs	Data sheet	1.1053131108.pdf 2.1053131108.pdf 3.1053131108.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Nano-Fit 105313	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	105313-1108 WM16899
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.149" (3.78mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Lock
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	59.0µin (1.50µm)
Contact Finish Thickness - Mating	59.0µin (1.50µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
