1053101216

Affinity Medical Technologies - a Molex company

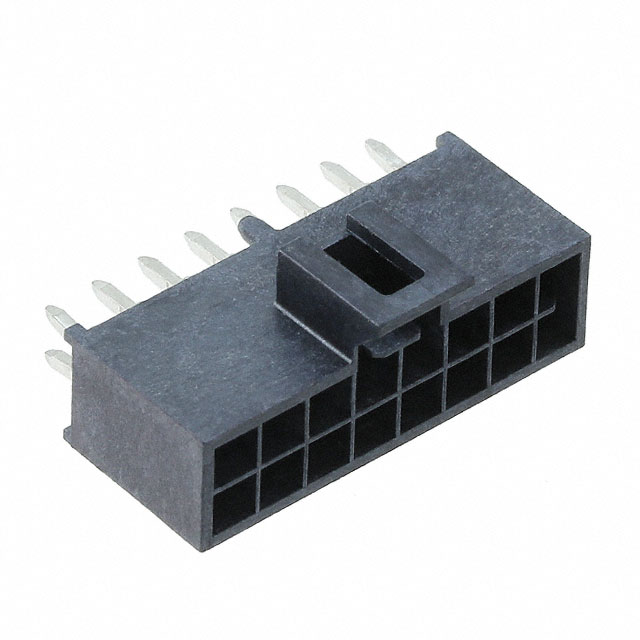

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1053101216
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	NANO-FIT HDR VT DLR KNK 16CKT 15
Datasheets:	1.1053101216.pdf 2.1053101216.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22633 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 22633 pcs

Reference Price (In US Dollars)

1 pcs: $1.488

84 pcs: $1.25

168 pcs: $1.19

504 pcs: $1.012

1008 pcs: $0.863

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.488

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1053101216

Part Number	1053101216	Manufacturer	Affinity Medical Technologies - a Molex company
Description	NANO-FIT HDR VT DLR KNK 16CKT 15	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22633 pcs	Data sheet	1.1053101216.pdf 2.1053101216.pdf
Voltage Rating	250V	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Nano-Fit 105310	Row Spacing - Mating	0.098" (2.50mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	105310-1216 WM15060
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Material Flammability Rating	-	Mated Stacking Heights	21.30mm
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.356" (9.05mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Lock
Detailed Description	Connector Header Through Hole 16 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	59.0µin (1.50µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
