1053101212

Affinity Medical Technologies - a Molex company

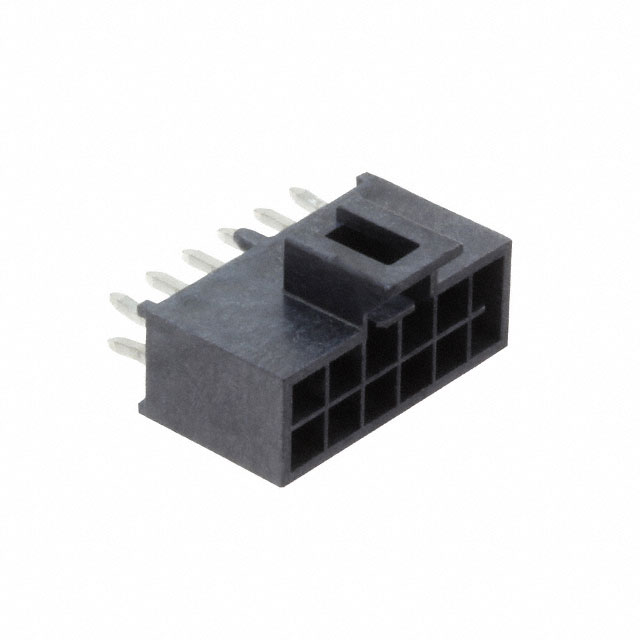

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1053101212
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	NANO-FIT HDR VT DLR KNK 12CKT 15
Datasheets:	1.1053101212.pdf 2.1053101212.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41285 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 41285 pcs

Reference Price (In US Dollars)

1 pcs: $0.946

10 pcs: $0.907

102 pcs: $0.756

510 pcs: $0.643

1020 pcs: $0.548

5100 pcs: $0.492

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.946

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1053101212

Part Number	1053101212	Manufacturer	Affinity Medical Technologies - a Molex company
Description	NANO-FIT HDR VT DLR KNK 12CKT 15	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41285 pcs	Data sheet	1.1053101212.pdf 2.1053101212.pdf
Voltage Rating	250V	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Nano-Fit 105310	Row Spacing - Mating	0.098" (2.50mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	105310-1212 WM15058
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Material Flammability Rating	-
Mated Stacking Heights	21.30mm	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.356" (9.05mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Guide
Fastening Type	Latch Lock	Detailed Description	Connector Header Through Hole 12 position 0.098" (2.50mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.126" (3.20mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	59.0µin (1.50µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
