0901310922

Affinity Medical Technologies - a Molex company

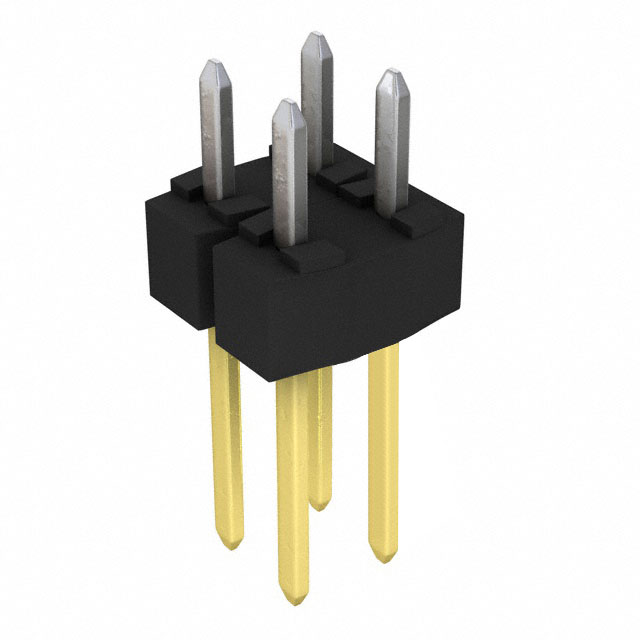

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0901310922
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 4POS .100" STR GOLD
Datasheets:	0901310922.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4938 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4938 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0901310922

Part Number	0901310922	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 4POS .100" STR GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4938 pcs	Data sheet	0901310922.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Unshrouded
Series	C-Grid III 90131	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.478" (12.15mm)	Other Names	090131-0922 90131-0922 901310922
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.098" (2.50mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 4 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.114" (2.90mm)	Contact Length - Mating	0.266" (6.75mm)
Contact Finish Thickness - Post	118.1µin (3.00µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose
