Affinity Medical Technologies - a Molex company

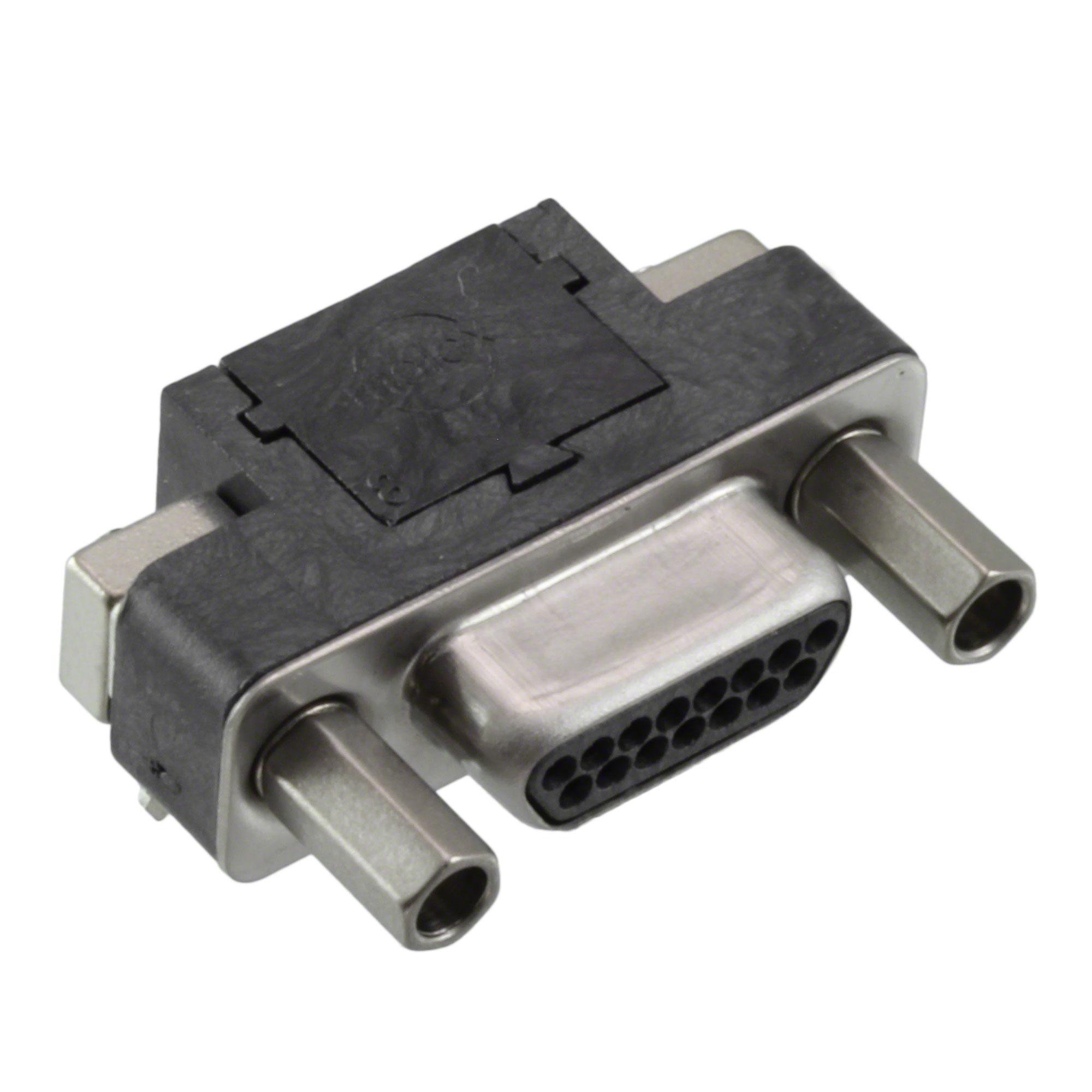

| Part Number | 0836129020 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN MICRO-D PLUG 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5891 pcs | Data sheet | 0836129020.pdf |
| Wire Gauge | - | Voltage Rating | - |
| Termination | Solder | Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
| Shell Material, Finish | Steel, Nickel Plated | Series | Commercial Micro-D Series 83612 |
| Packaging | Tube | Other Names | 083612-9020 083612-9020-E 0836129020-E 83612-9020 83612-9020-E 836129020 836129020-E SD-83612-002 WM2143 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions | 15 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Flange Feature | Mating Side, Female Screwlock (2-56) | Features | Board Lock, Shielded |
| Detailed Description | 15 Position D-Type, Micro-D Plug, Male Pins Connector | Current Rating | 1A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Type, Micro-D | Color | - |
| Backset Spacing | 0.267" (6.78mm) |
