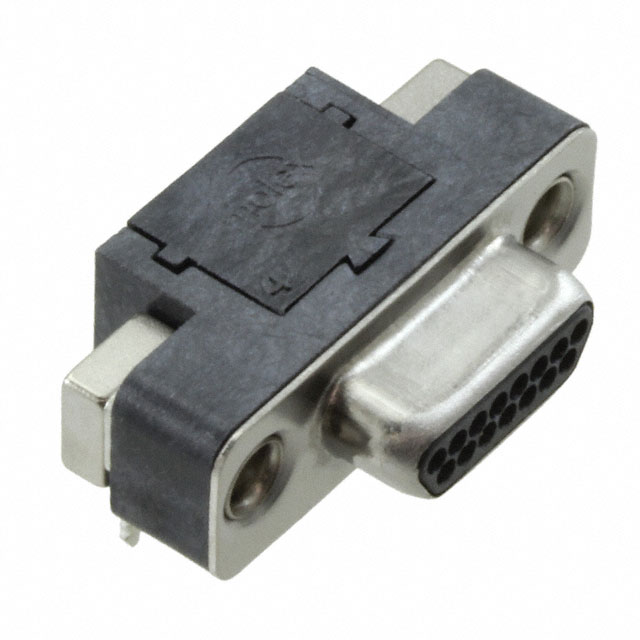

Molex, LLC
| Part Number | 0836129022 | Manufacturer | Molex, LLC |
|---|---|---|---|
| Description | CONN MICRO-D PLUG 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8595 pcs | Data sheet | 1.0836129022.pdf2.0836129022.pdf |
| Voltage - DC Spark Over (Nom) | Copper Alloy | Voltage | - |
| Type Attributes | - | Termination | Solder |
| Stacking Direction | Signal | Shell Size - Insert (Convert From) | Steel, Nickel Plated |
| Series | Commercial Micro-D Series 83612 | RoHS Status | Tube |
| Pitch - Connector | - | Other Names | 0836129022-ND 83612-9022 836129022 WM14797 |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 2 |
| Number of Positions | 15 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Manufacturer Part Number | 0836129022 |
| Length - Threaded Portion Below Head | - | Features | Board Lock, Shielded |
| Expanded Description | 15 Position D-Type, Micro-D Plug, Male Pins Connector, Panel Mount, Through Hole, Right Angle Solder | Description | CONN MICRO-D PLUG 15POS R/A SLDR |
| Current Rating (Per Contact) | Housing/Shell (2-56) | Current Rating | 1A |
| Contact Form | 0.050 Pitch x 0.050 Row to Row | Contact Finish Thickness | Gold |
| Connector Usage | D-Type, Micro-D | Connector Type | Plug, Male Pins |
| Color | - | Cable Opening | Liquid Crystal Polymer (LCP) |
| Cable Diameter | 15µin (0.38µm) | Backset Spacing | - |
