0546841004

Affinity Medical Technologies - a Molex company

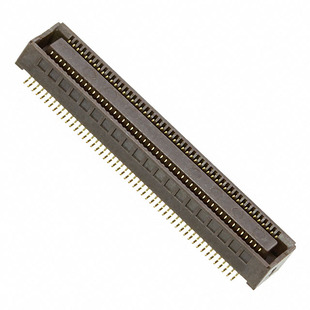

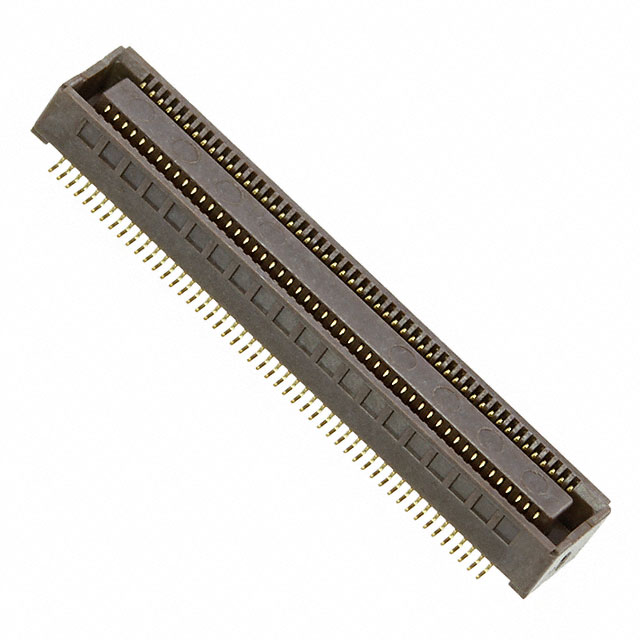

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0546841004
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT BTB 100POS DL VERT SMD
Datasheets:	1.0546841004.pdf 2.0546841004.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38055 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38055 pcs

Reference Price (In US Dollars)

1500 pcs: $0.905

3000 pcs: $0.872

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.905

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0546841004

Part Number	0546841004	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT BTB 100POS DL VERT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38055 pcs	Data sheet	1.0546841004.pdf 2.0546841004.pdf
Series	SlimStack 54684	Pitch	0.016" (0.40mm)
Packaging	Tape & Reel (TR)	Other Names	054684-1004 54684-1004 54684-1004-TR375 546841004 WM8792TR
Number of Rows	2	Number of Positions	100
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	3.5mm, 4mm	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.102" (2.60mm)
Features	-	Detailed Description	100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Receptacle, Center Strip Contacts
