0546840904

Affinity Medical Technologies - a Molex company

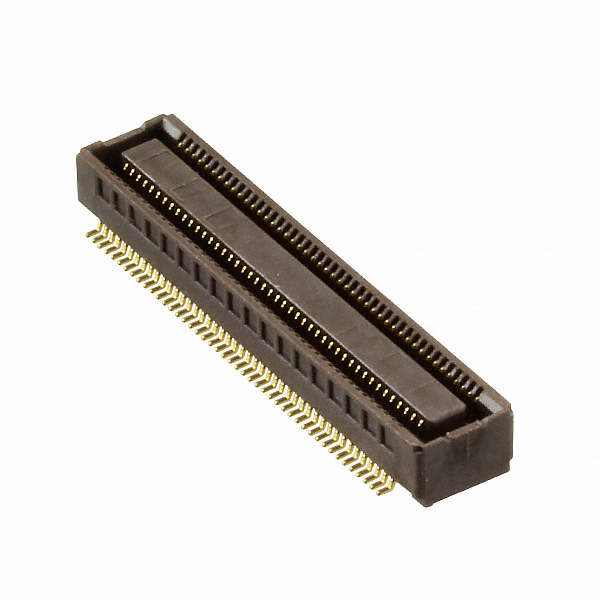

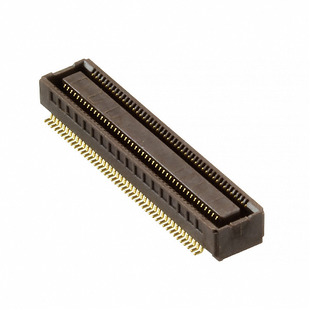

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0546840904
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT BTB 90POS DL VERT SMD
Datasheets:	1.0546840904.pdf 2.0546840904.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16313 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16313 pcs

Reference Price (In US Dollars)

6000 pcs: $1.845

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.845

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0546840904

Part Number	0546840904	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT BTB 90POS DL VERT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16313 pcs	Data sheet	1.0546840904.pdf 2.0546840904.pdf
Series	SlimStack 54684	Pitch	0.016" (0.40mm)
Packaging	Tape & Reel (TR)	Other Names	054684-0904 54684-0904 54684-0904-TR375 546840904 WM8793TR
Number of Rows	2	Number of Positions	90
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	3.5mm, 4mm	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.102" (2.60mm)
Features	-	Detailed Description	90 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Receptacle, Center Strip Contacts
