0541324562

Affinity Medical Technologies - a Molex company

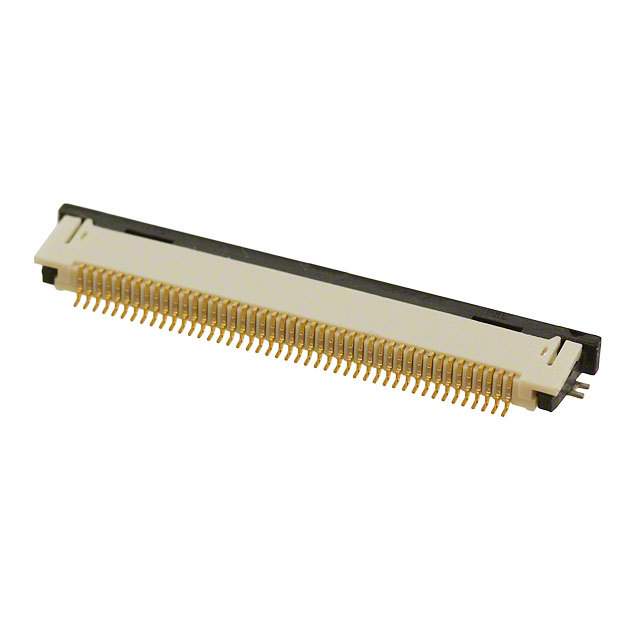

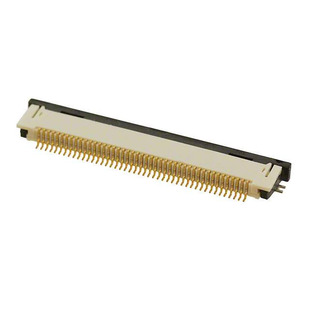

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0541324562
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 45POS 0.50MM R/A
Datasheets:	1.0541324562.pdf 2.0541324562.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	81079 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 81079 pcs

Reference Price (In US Dollars)

1500 pcs: $0.368

3000 pcs: $0.355

7500 pcs: $0.338

10500 pcs: $0.33

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.368

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0541324562

Part Number	0541324562	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 45POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81079 pcs	Data sheet	1.0541324562.pdf 2.0541324562.pdf
Voltage Rating	50V	Termination	Solder
Series	54132	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	054132-4562 54132-4562 54132-4562-TR375 541324562 WM8850TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	45
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	14 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Housing Color	White	Height Above Board	0.079" (2.00mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	45 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Actuator Color	Black
