Affinity Medical Technologies - a Molex company
| Part Number | 0541324397 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

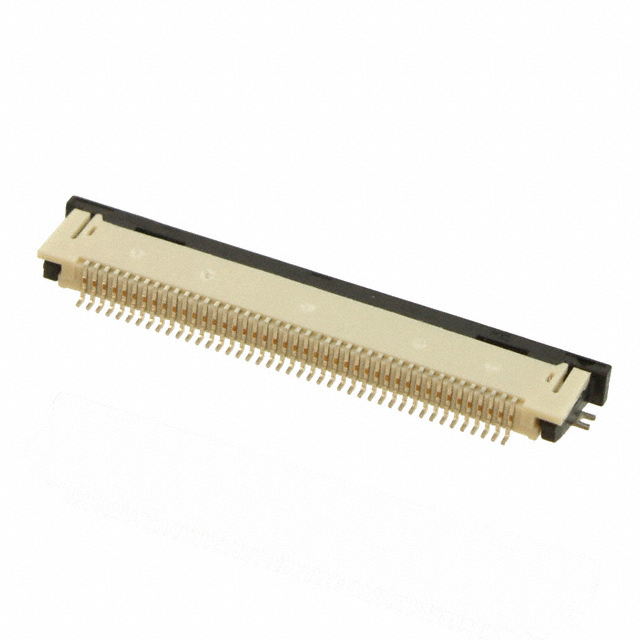

| Description | CONN FFC BOTTOM 43POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6025 pcs | Data sheet | 1.0541324397.pdf2.0541324397.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | Easy-On 54132 | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | 054132-4397 54132-4397 54132-4397-TR375 541324397 WM8851TR |
| Operating Temperature | -20°C ~ 85°C | Number of Positions | 43 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Housing Color | - |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 43 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 39.4µin (1.00µm) |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight, Tapered | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | - |
