0532590329

Affinity Medical Technologies - a Molex company

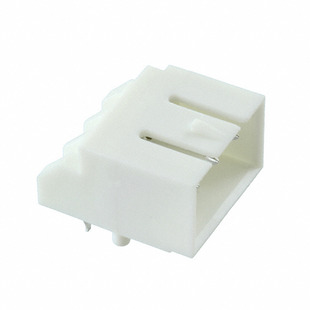

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0532590329
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	3.5 WTB WAFER ASSY RA 3CKT
Datasheets:	1.0532590329.pdf 2.0532590329.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	166998 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 166998 pcs

Reference Price (In US Dollars)

1 pcs: $0.235

10 pcs: $0.219

100 pcs: $0.168

600 pcs: $0.146

1200 pcs: $0.121

5400 pcs: $0.106

10200 pcs: $0.099

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.235

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0532590329

Part Number	0532590329	Manufacturer	Affinity Medical Technologies - a Molex company
Description	3.5 WTB WAFER ASSY RA 3CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	166998 pcs	Data sheet	1.0532590329.pdf 2.0532590329.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	53259	Row Spacing - Mating	-
Pitch - Mating	0.138" (3.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	053259-0329 0532590329-ND 53259-0329 532590329 WM14649
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBTP)	Insulation Height	0.311" (7.90mm)
Insulation Color	-	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
