0532590229

Affinity Medical Technologies - a Molex company

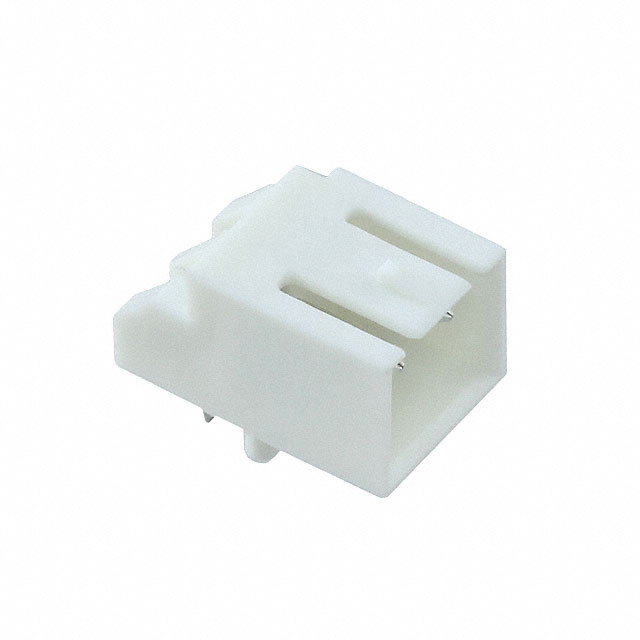

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0532590229
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	3.5 WTB WAFER ASSY RA 2CKT
Datasheets:	1.0532590229.pdf 2.0532590229.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	172985 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 172985 pcs

Reference Price (In US Dollars)

1 pcs: $0.199

10 pcs: $0.185

100 pcs: $0.142

800 pcs: $0.111

1600 pcs: $0.098

5600 pcs: $0.089

10400 pcs: $0.083

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.199

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0532590229

Part Number	0532590229	Manufacturer	Affinity Medical Technologies - a Molex company
Description	3.5 WTB WAFER ASSY RA 2CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	172985 pcs	Data sheet	1.0532590229.pdf 2.0532590229.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	53259	Row Spacing - Mating	-
Pitch - Mating	0.138" (3.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	053259-0229 0532590229-ND 53259-0229 532590229 WM14648
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBTP)	Insulation Height	0.311" (7.90mm)
Insulation Color	-	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 2 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
