0522713079

Affinity Medical Technologies - a Molex company

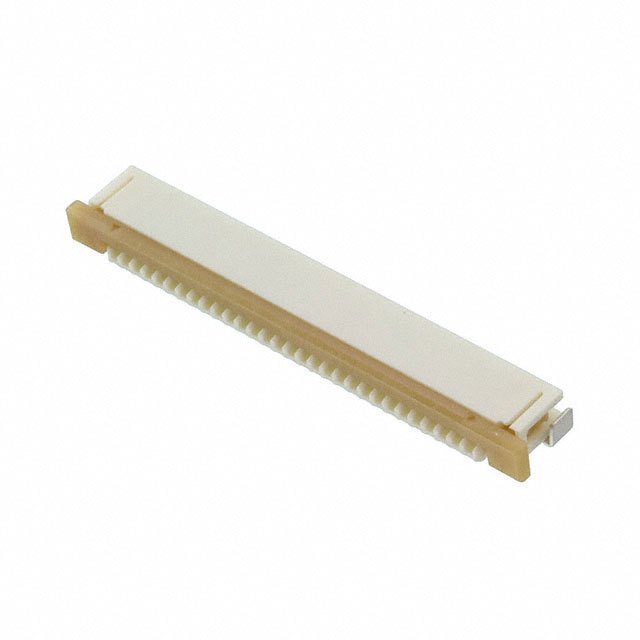

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522713079
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 30POS 1.00MM R/A
Datasheets:	0522713079.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	81983 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 81983 pcs

Reference Price (In US Dollars)

1000 pcs: $0.429

2000 pcs: $0.415

3000 pcs: $0.401

5000 pcs: $0.381

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.429

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522713079

Part Number	0522713079	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 30POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81983 pcs	Data sheet	0522713079.pdf
Voltage Rating	50V	Termination	Solder
Series	52271	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	052271-3079 052271-3079-C 0522713079-C 52271-3019 52271-3079 52271-3079-C 522713079 522713079-C WM7967TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	30
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6
Housing Color	-	Height Above Board	0.118" (3.00mm)
Flat Flex Type	FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	30 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
