0522712879

Affinity Medical Technologies - a Molex company

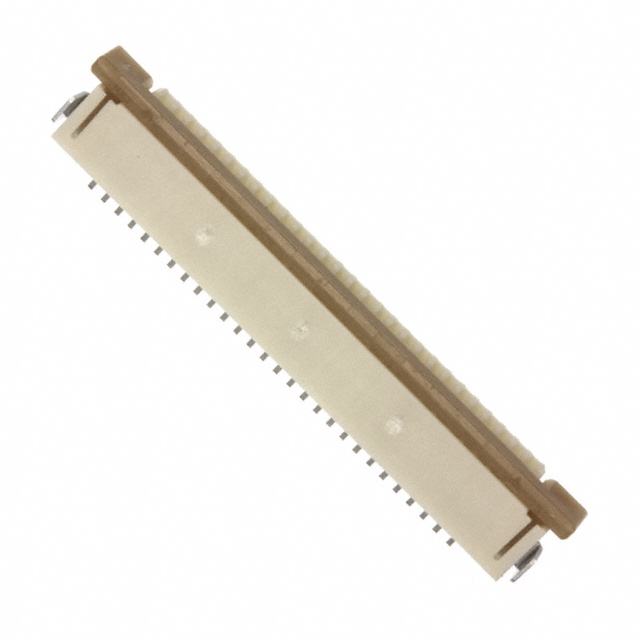

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522712879
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 28POS 1.00MM R/A
Datasheets:	0522712879.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	80386 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 80386 pcs

Reference Price (In US Dollars)

1000 pcs: $0.421

2000 pcs: $0.407

3000 pcs: $0.393

5000 pcs: $0.373

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.421

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522712879

Part Number	0522712879	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 28POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80386 pcs	Data sheet	0522712879.pdf
Voltage Rating	50V	Termination	Solder
Series	52271	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	52271-2879 522712879 WM3758TR WM3758TR-ND WM7966TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	28
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6
Housing Color	-	Height Above Board	0.118" (3.00mm)
Flat Flex Type	FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	28 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
