0522070460

Affinity Medical Technologies - a Molex company

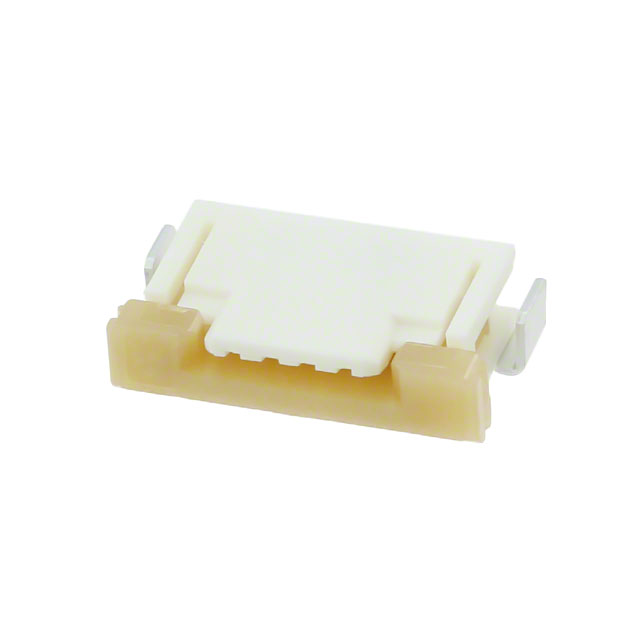

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522070460
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC TOP 4POS 1.00MM R/A
Datasheets:	0522070460.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	254283 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 254283 pcs

Reference Price (In US Dollars)

1000 pcs: $0.15

2000 pcs: $0.14

3000 pcs: $0.136

5000 pcs: $0.131

10000 pcs: $0.124

25000 pcs: $0.122

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.15

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522070460

Part Number	0522070460	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC TOP 4POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	254283 pcs	Data sheet	0522070460.pdf
Voltage Rating	125V	Termination	Solder
Series	52207	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	52207-0460 522070460 WM3749TR
Operating Temperature	-30°C ~ 85°C	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6
Housing Color	-	Height Above Board	0.106" (2.70mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	4 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
