0522070333

Affinity Medical Technologies - a Molex company

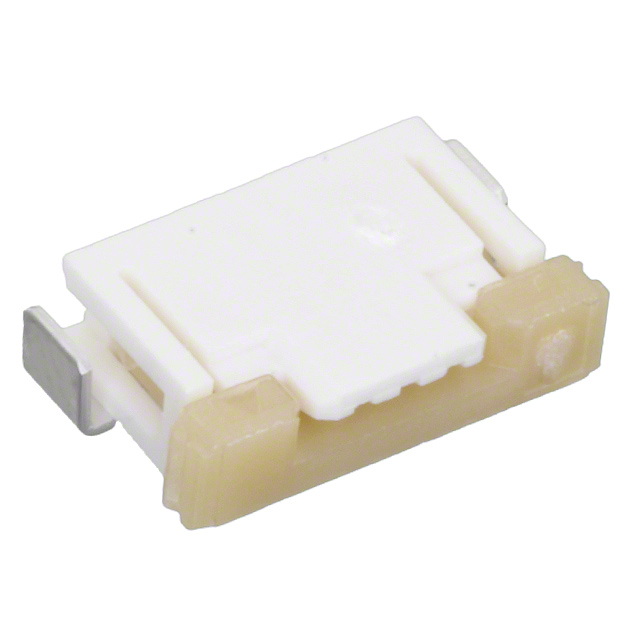

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522070333
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC TOP 3POS 1.00MM R/A
Datasheets:	0522070333.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	284096 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 284096 pcs

Reference Price (In US Dollars)

1000 pcs: $0.132

2000 pcs: $0.128

3000 pcs: $0.12

5000 pcs: $0.116

10000 pcs: $0.108

25000 pcs: $0.104

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.132

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522070333

Part Number	0522070333	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC TOP 3POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	284096 pcs	Data sheet	0522070333.pdf
Voltage Rating	125V	Termination	Solder
Series	Easy-On 52207	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	0052207-0333 052207-0333 0522070333-ND 52207-0333 522070333 WM10934TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	3
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	8 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA), Nylon, Glass Filled
Housing Color	White	Height Above Board	0.106" (2.70mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	3 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Top	Cable End Type	Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	Brown
