0512812694

Affinity Medical Technologies - a Molex company

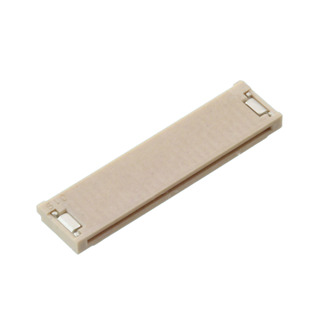

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0512812694
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC 26POS 0.50MM R/A
Datasheets:	1.0512812694.pdf 2.0512812694.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	129049 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 129049 pcs

Reference Price (In US Dollars)

3000 pcs: $0.255

6000 pcs: $0.246

9000 pcs: $0.233

15000 pcs: $0.228

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.255

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0512812694

Part Number	0512812694	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC 26POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	129049 pcs	Data sheet	1.0512812694.pdf 2.0512812694.pdf
Voltage Rating	50V	Termination	Solder
Series	51281	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	051281-2694 0512812694-ND 51281-2694 512812694 WM10929TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	26
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	4 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	-	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention
FFC, FCB Thickness	0.30mm	Detailed Description	26 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Top and Bottom	Cable End Type	Straight, Tapered
Actuator Material	-	Actuator Color	-
