0512811894

Affinity Medical Technologies - a Molex company

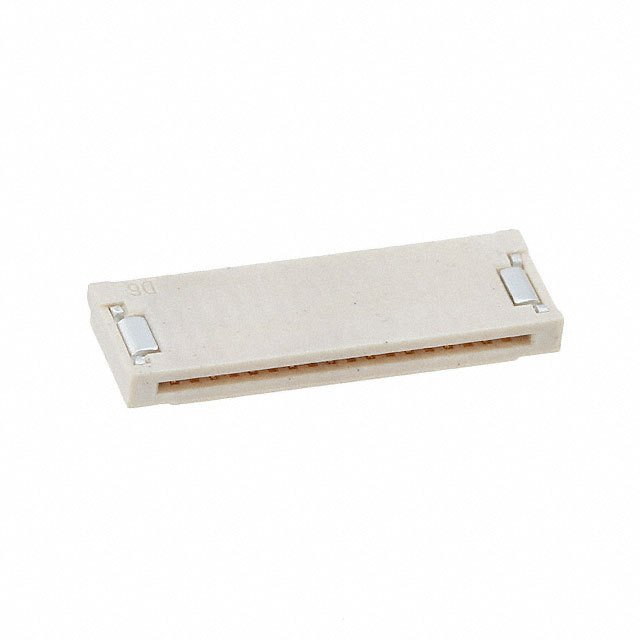

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0512811894
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC 18POS 0.50MM R/A
Datasheets:	1.0512811894.pdf 2.0512811894.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	85219 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 85219 pcs

Reference Price (In US Dollars)

1 pcs: $0.426

10 pcs: $0.375

25 pcs: $0.353

50 pcs: $0.339

100 pcs: $0.324

250 pcs: $0.294

500 pcs: $0.265

1000 pcs: $0.236

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.426

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0512811894

Part Number	0512811894	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC 18POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	85219 pcs	Data sheet	1.0512811894.pdf 2.0512811894.pdf
Voltage Rating	50V	Termination	Solder
Series	51281	Pitch	0.020" (0.50mm)
Packaging	Original-Reel®	Other Names	WM10926DKR
Operating Temperature	-20°C ~ 85°C	Number of Positions	18
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Color	-	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention
FFC, FCB Thickness	0.30mm	Detailed Description	18 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Top and Bottom	Cable End Type	Straight, Tapered
Actuator Material	-	Actuator Color	-
