0447690801

Affinity Medical Technologies - a Molex company

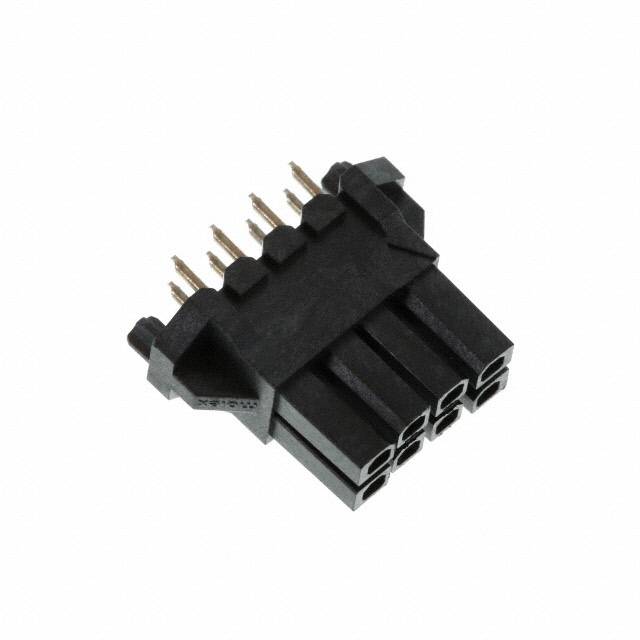

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0447690801
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR RCPT 8POS VERT TIN PCB
Datasheets:	1.0447690801.pdf 2.0447690801.pdf 3.0447690801.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33998 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 33998 pcs

Reference Price (In US Dollars)

1 pcs: $0.968

10 pcs: $0.928

100 pcs: $0.774

500 pcs: $0.658

1620 pcs: $0.542

6480 pcs: $0.503

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.968

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0447690801

Part Number	0447690801	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR RCPT 8POS VERT TIN PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33998 pcs	Data sheet	1.0447690801.pdf 2.0447690801.pdf 3.0447690801.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Board or Cable	Series	Micro-Fit 3.0 BMI 44769
Row Spacing - Mating	0.118" (3.00mm)	Pitch - Mating	0.118" (3.00mm)
Packaging	Tray	Other Names	044769-0801 044769-0801-E 0447690801-E 44769-0801 44769-0801-E 44769-0801-TR90 447690801 447690801-E WM1955
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	16.86mm
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.535" (13.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	8 Position Receptacle Connector 0.118" (3.00mm) Through Hole Tin	Current Rating	5A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.134" (3.40mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	General Purpose, Telecommunications
