0447642401

Affinity Medical Technologies - a Molex company

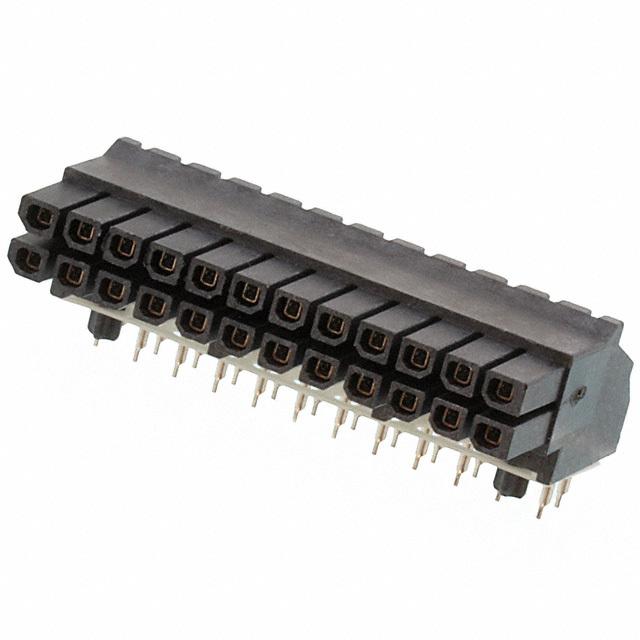

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0447642401
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT 24POS DUAL R/A 3MM
Datasheets:	1.0447642401.pdf 2.0447642401.pdf 3.0447642401.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10525 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10525 pcs

Reference Price (In US Dollars)

1 pcs: $2.792

10 pcs: $2.676

360 pcs: $1.978

720 pcs: $1.861

1080 pcs: $1.629

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.792

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0447642401

Part Number	0447642401	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT 24POS DUAL R/A 3MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10525 pcs	Data sheet	1.0447642401.pdf 2.0447642401.pdf 3.0447642401.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Board or Cable	Series	Micro-Fit 3.0 BMI 44764
Row Spacing - Mating	0.118" (3.00mm)	Pitch - Mating	0.118" (3.00mm)
Packaging	Tray	Other Names	044764-2401 44764-2401 447642401 WM7535
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.402" (10.20mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	24 Position Receptacle Connector 0.118" (3.00mm) Through Hole, Right Angle Tin	Current Rating	5A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.155" (3.94mm)
Contact Finish Thickness - Post	40.0µin (1.02µm)	Contact Finish Thickness - Mating	40.0µin (1.02µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle	Applications	General Purpose, Telecommunications
