0348302001

Affinity Medical Technologies - a Molex company

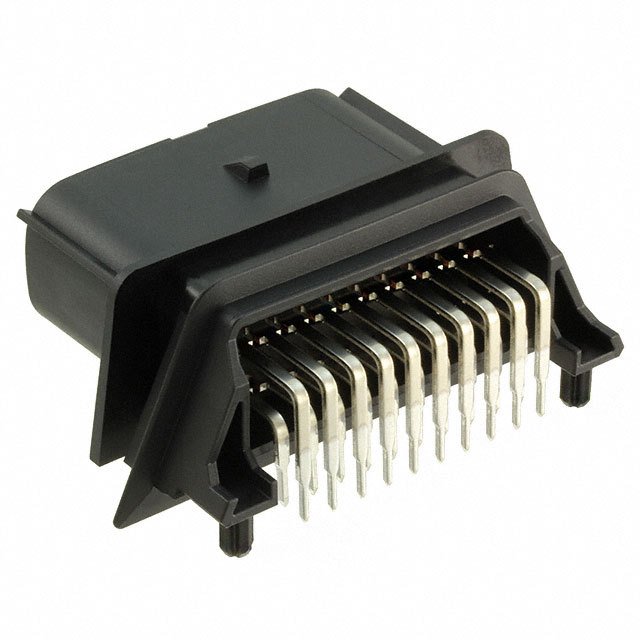

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0348302001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MX150 RA HDR 2X10 ST BLK KEY A
Datasheets:	1.0348302001.pdf 2.0348302001.pdf 3.0348302001.pdf 4.0348302001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12306 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12306 pcs

Reference Price (In US Dollars)

1 pcs: $2.67

10 pcs: $2.559

25 pcs: $2.336

50 pcs: $2.225

100 pcs: $2.114

300 pcs: $1.891

600 pcs: $1.78

1200 pcs: $1.558

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.67

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0348302001

Part Number	0348302001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MX150 RA HDR 2X10 ST BLK KEY A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12306 pcs	Data sheet	1.0348302001.pdf 2.0348302001.pdf 3.0348302001.pdf 4.0348302001.pdf
Voltage Rating	14VDC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX150 34830	Row Spacing - Mating	0.138" (3.50mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	034830-2001 0348302001-ND 34830-2001 348302001 WM12752
Operating Temperature	-40°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.996" (25.29mm)
Insulation Color	Black	Ingress Protection	IP67/69K - Dust Tight, Water Resistant, Waterproof
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
