0348300801

Affinity Medical Technologies - a Molex company

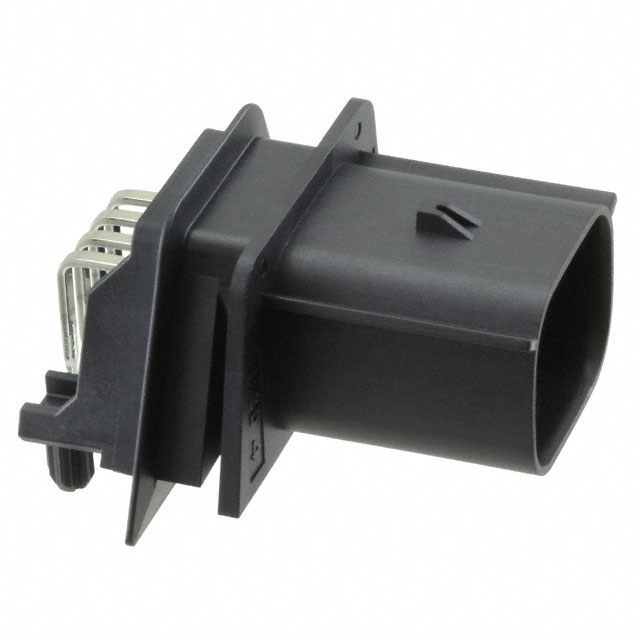

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0348300801
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MX150 RA HDR 2X4 ST BLK KEY A
Datasheets:	0348300801.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22351 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 22351 pcs

Reference Price (In US Dollars)

1 pcs: $1.687

10 pcs: $1.621

25 pcs: $1.486

50 pcs: $1.418

100 pcs: $1.351

420 pcs: $1.182

840 pcs: $1.047

1260 pcs: $0.979

2520 pcs: $0.912

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.687

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0348300801

Part Number	0348300801	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MX150 RA HDR 2X4 ST BLK KEY A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22351 pcs	Data sheet	0348300801.pdf
Voltage Rating	14VDC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX150 34830	Row Spacing - Mating	0.138" (3.50mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	034830-0801 0348300801-ND 34830-0801 348300801 WM14555
Operating Temperature	-40°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	1.014" (25.75mm)
Insulation Color	Black	Ingress Protection	IP67/69K - Dust Tight, Water Resistant, Waterproof
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.138" (3.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
