Product Overview

Part Number:	0039294209
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company

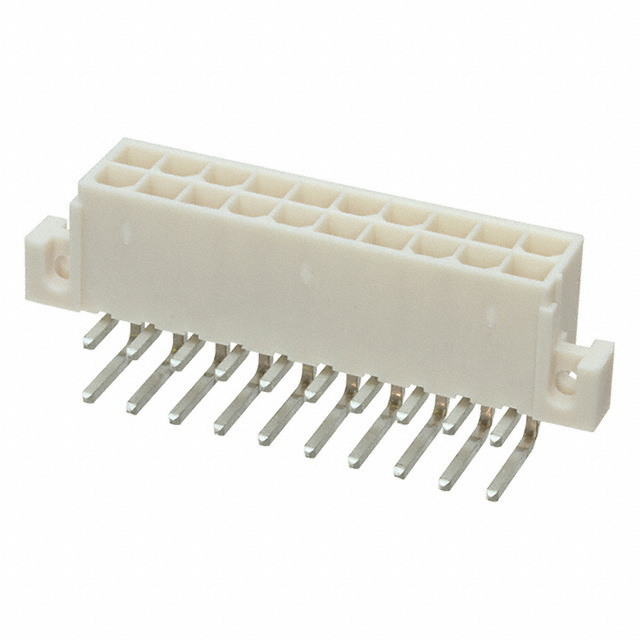

Product description	20POS MINIFIT ASSY A556920AG1210
Datasheets:	1.0039294209.pdf 2.0039294209.pdf 3.0039294209.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12446 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12446 pcs

Reference Price (In US Dollars)

1 pcs: $3.125

10 pcs: $2.989

100 pcs: $2.513

500 pcs: $2.106

1000 pcs: $1.861

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.125

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039294209

Part Number	0039294209	Manufacturer	Affinity Medical Technologies - a Molex company
Description	20POS MINIFIT ASSY A556920AG1210	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12446 pcs	Data sheet	1.0039294209.pdf 2.0039294209.pdf 3.0039294209.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5569	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0039-29-4209 003929-4209 0039294209-ND 39-29-4209 39294209 A556920AG1210 WM19552
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.378" (9.60mm)
Insulation Color	Natural	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
