0039294089

Affinity Medical Technologies - a Molex company

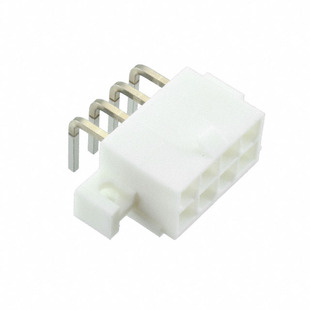

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039294089
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINIFIT JR RA DR /FLGS 30AU 8POS
Datasheets:	1.0039294089.pdf 2.0039294089.pdf 3.0039294089.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26535 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26535 pcs

Reference Price (In US Dollars)

1 pcs: $1.319

10 pcs: $1.264

100 pcs: $1.053

500 pcs: $0.895

1000 pcs: $0.764

5000 pcs: $0.685

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.319

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039294089

Part Number	0039294089	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINIFIT JR RA DR /FLGS 30AU 8POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26535 pcs	Data sheet	1.0039294089.pdf 2.0039294089.pdf 3.0039294089.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5569	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0039-29-4089 003929-4089 0039294089-ND 39-29-4089 39294089 5569-08AG1-210 WM13496
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.378" (9.60mm)
Insulation Color	Natural	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
