0022291084

Affinity Medical Technologies - a Molex company

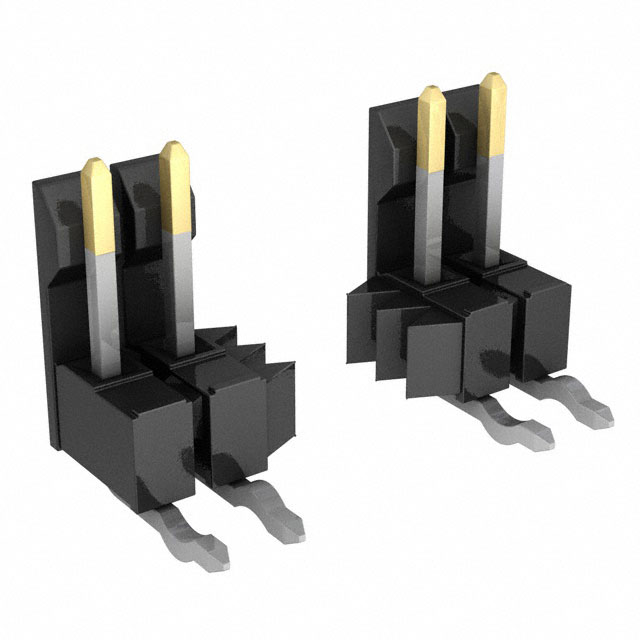

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022291084
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK 100 HDR FRLK RTAN 8POS
Datasheets:	1.0022291084.pdf 2.0022291084.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	76352 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 76352 pcs

Reference Price (In US Dollars)

500 pcs: $0.436

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.436

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022291084

Part Number	0022291084	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK 100 HDR FRLK RTAN 8POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76352 pcs	Data sheet	1.0022291084.pdf 2.0022291084.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 42228	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0022-29-1084 002229-1084 22-29-1084 22291084 42228-0462
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	7	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.284" (7.21mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.135" (3.43mm)
Contact Length - Mating	0.295" (7.49mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Medical, Telecommunications
