0015244455

Affinity Medical Technologies - a Molex company

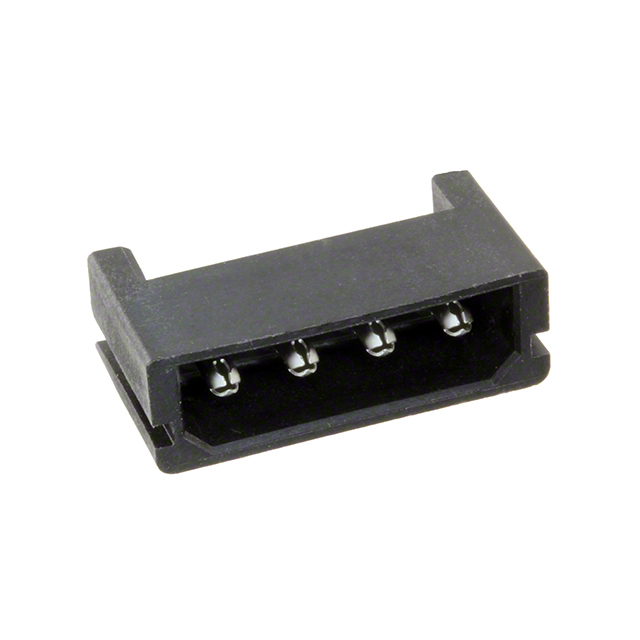

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0015244455
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 4POS R/A SMD
Datasheets:	0015244455.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5110 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5110 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0015244455

Part Number	0015244455	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 4POS R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5110 pcs	Data sheet	0015244455.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	8981	Row Spacing - Mating	-
Pitch - Mating	0.200" (5.08mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0015-24-4455 001524-4455 0015244455-ND 15-24-4455 15244455 A-8981-4SM1-LF WM13410
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Board Edge, Straddle Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Insulation Height	0.332" (8.43mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Board Edge, Straddle Mount 4 position 0.200" (5.08mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Length - Mating	0.295" (7.49mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	-
