0015244441

Affinity Medical Technologies - a Molex company

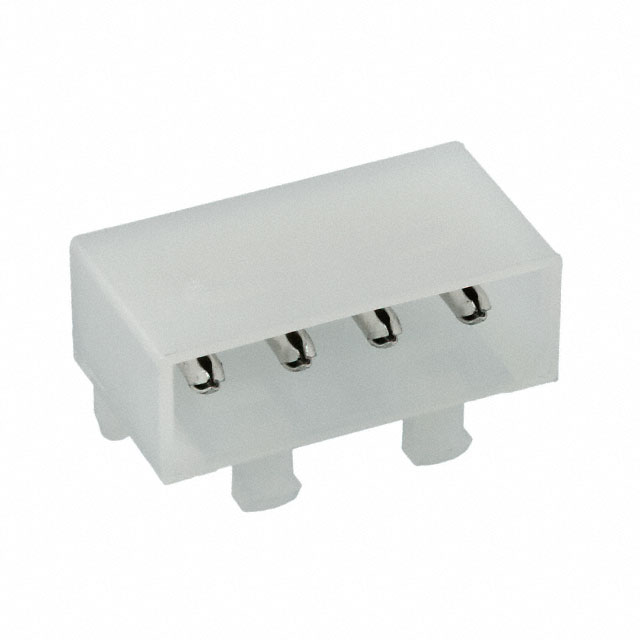

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0015244441
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 4POS .200 RT ANG TIN
Datasheets:	0015244441.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5163 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5163 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0015244441

Part Number	0015244441	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 4POS .200 RT ANG TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5163 pcs	Data sheet	0015244441.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	8981	Row Spacing - Mating	-
Pitch - Mating	0.200" (5.08mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0015-24-4441 0015-24-4441-E 0015244441-E 15-24-4441 15-24-4441-E 15-24-4441-ND 15244441 15244441-E A-8981-4R-1-LF WM6988
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.326" (8.27mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Guide, Board Lock
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.200" (5.08mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	0.140" (3.56mm)	Contact Length - Mating	0.181" (4.60mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	-
