0009652108

Affinity Medical Technologies - a Molex company

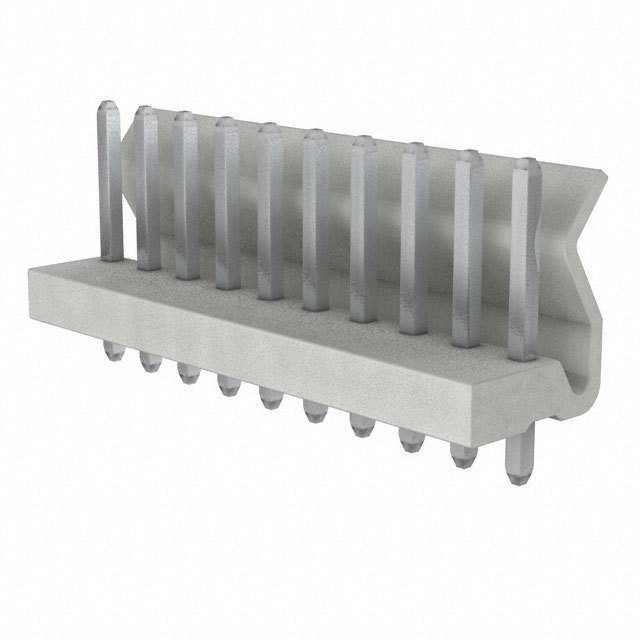

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0009652108
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADR 10POS 3.96MM VERT PCB
Datasheets:	0009652108.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	64210 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 64210 pcs

Reference Price (In US Dollars)

1 pcs: $0.585

10 pcs: $0.531

100 pcs: $0.455

500 pcs: $0.379

1000 pcs: $0.325

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.585

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0009652108

Part Number	0009652108	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADR 10POS 3.96MM VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64210 pcs	Data sheet	0009652108.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	KK 5273	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.687" (17.45mm)	Other Names	0009-65-2108 000965-2108 0009652108-ND 09-65-2108 09652108 5273-10A WM13091
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.482" (12.25mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 10 position 0.156" (3.96mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.142" (3.60mm)	Contact Length - Mating	0.419" (10.65mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	200.0µin (5.08µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
